- Place of Origin:CN;ZHE
- Output Type:AC Single Phase
- Brand Name:HUAHE
- Rated Power:5000W
- Rated Voltage:230V
- Rated Current:18.3A
- Frequency:50/60HZ
- Speed:1500RPM
- Model Number:5GF-B03
- Type:Silence

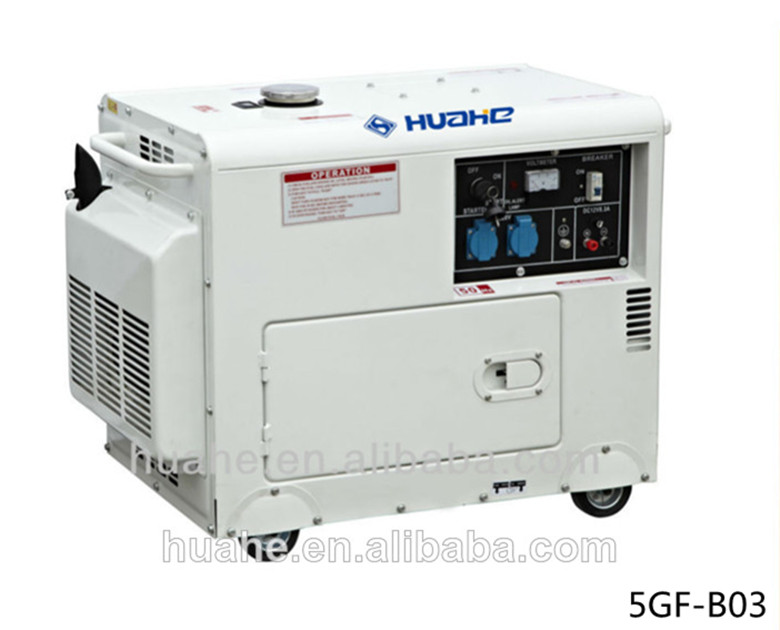

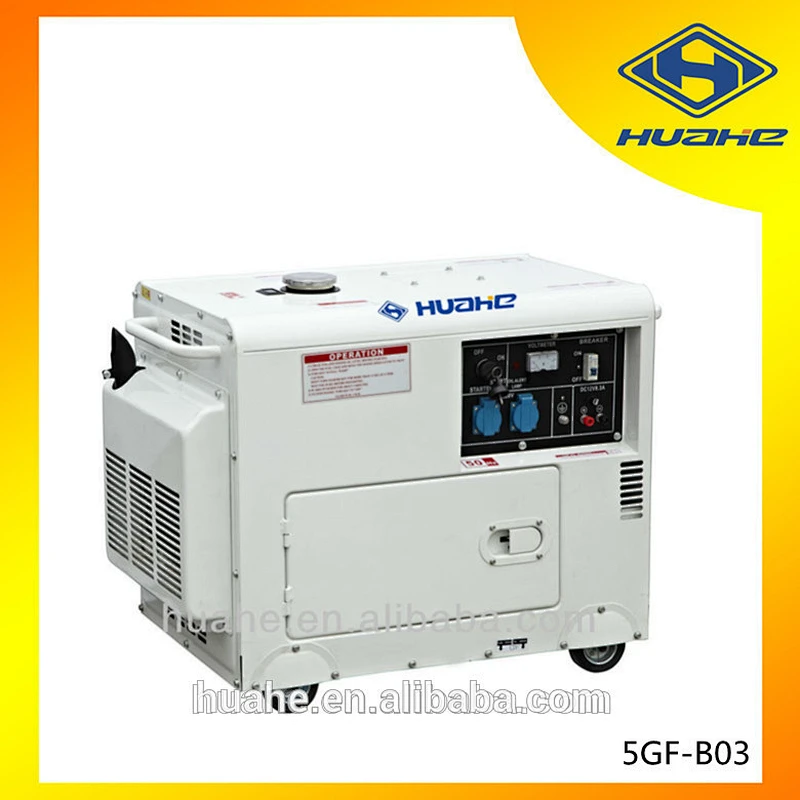

huahe 5kva 186f silent diesel generator set sell well in european,diesel generators prices
1. Low fuel consumption 2. ultra-low-noise 3.can be widely used in highways, railways, airports, factories, hospitals
Model | Silent type | ||
5GF | |||
Generator | Type | Revolving field type 2 pole generator | |
Frequency (Hz) | 50 | 60 | |
Cont. Output (KW) | 4.2 | 5 | |
Voltage (A.C)(V) | 230 | 240 (120) | |
Current (A.C)(A) | 18.3 | 20.8 (41.7) | |
Engine speed (r/min) | 3000 | 3600 | |
Phase | Single phase | ||
Power factor (COSΦ) | 1 | ||
Excitation system | Controlled constant self-excitation | ||
D.C output V/A | 12V/8.3A | ||
Operation capacity | 12 hour constant operation | ||
Coupling pattern | Straight shaft coupling | ||
Model | 186FG(E) | ||
Engine | Type | Direct injection vertical, 4-cycle, air-cooled diesel engine | |
Displacement cc (cu.in) | 406 (24.78) | ||
Max. output (KW/rpm) | 6.6 | 7.35 | |
Cont. output (KW/rpm) | 5.9 | 6.6 | |
Starting system | Electric start | ||
Governor system | Centrifugal weight system | ||
Fuel | Diesel light fuel (BS-AL or equivalent) | ||
Fuel tank capacity (L) | 16 | ||
Lube oil capacity (L) | 1.65 | ||
Bore×Stroke | 86×75 | ||
Protection system | Low oil, warning system/Stop device (not for L-series) | ||
Unit | Noise level at 7m dB (A) | 770 | |
Dimension (L×W×H) (mm) | 950×580×740 | ||
Dry weight (kg) | 157 | ||
(5kva silent diesel generator,generator sell well in european,186f diesel generator set;5kva silent diesel generator,generator sell well in european,186f diesel generator set;5kva silent diesel generator,generator sell well in european,186f diesel generator set;5kva silent diesel generator,generator sell well in european,186f diesel generator set;5kva silent diesel generator,generator sell well in european,186f diesel generator set;5kva silent diesel generator,generator sell well in european,186f diesel generator set;5kva silent diesel generator,generator sell well in european,186f diesel generator set;5kva silent diesel generator,generator sell well in european,186f diesel generator set;5kva silent diesel generator,generator sell well in european,186f diesel generator set;5kva silent diesel generator,generator sell well in european,186f diesel generator set;5kva silent diesel generator,generator sell well in european,186f diesel generator set;5kva silent diesel generator,generator sell well in european,186f diesel generator set;5kva silent diesel generator,generator sell well in european,186f diesel generator set;)
Huahe company, introduces the Silent Diesel Generator. This 5000 watts (5.0 kW) portable, silent diesel generator is suitable both as a stand-alone backup generator and for use at project sites. The diesel generator is one of the few systems in market that fully meets quality and safety standards. The bearings in any generator are among the most critical components. Huahe generators use the most premium bearings manufactured by some of the world's leading producers. The Huahe incorporates the latest innovations, such as the latest generation of AVR (Automatic Voltage Regulator), laser balanced crankshaft, heavy duty flywheel, premium starter, premium fuel injector, full copper alternator and more. Huahe also provides one of the best warranties. The diesel generators are super quiet, powerful, versatile and safe.
Huahe 5GF uses a true 186FG (E), 11 HP, 418 cc engine. Therefore, Huahe provides a true 5000W max engine power (tested at 5.2kw surge). With its standard preheater, anticorrosion exterior finish, the generator is designed and tested to operate in the harshest climates with ease. -Max Surge Output: 5200 Watts -Rated Output: 5000 Watts -Voltage: 120V & 220V -Engine: 4 Stroke Vertical Air Cooled -Horsepower: 11 HP -Fuel Capacity: 4.3 Gallons (16 Liters) -Ignition: Electric (Key) -Dimension: 950mm x 580mm x 740mm -Includes Pre-Heater for Cold Climates -Includes 2 keys -Made In China
