- Place of Origin:CN;ZHE
- Brand Name:HUAHE
- Fuel:Gasoline
- Cold Style:Air-cooled
- Warranty:One year
- Start:Kick Start
- After-sales Service Provided:Engineers available to service machinery overseas
- Condition:New
- Certification:ISO9001
- Cylinder:Single Cylinder
- Stroke:4 Stroke
- Dimension(L*W*H):510mmx420mmx475mm
- Weight:34kg
- Model Number:HH188-F
- Usage:Generator, Water pump, Pressure washer...
- Color:Yellow,Black, Red

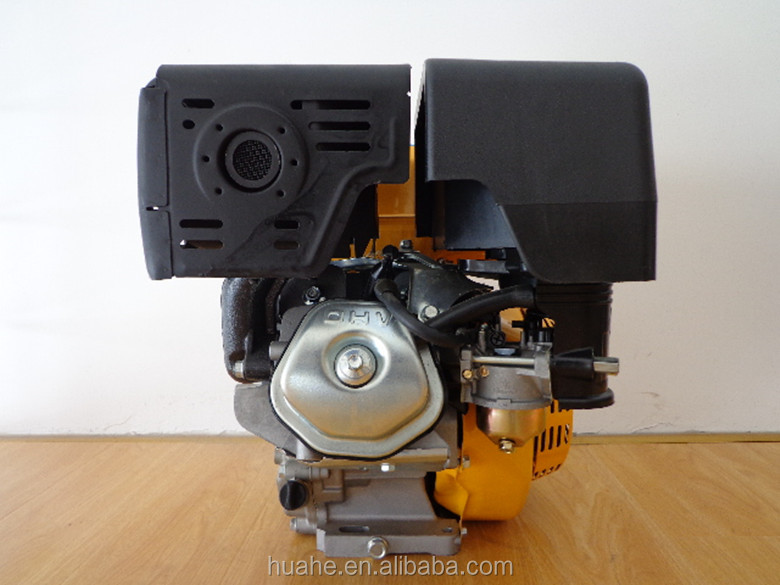

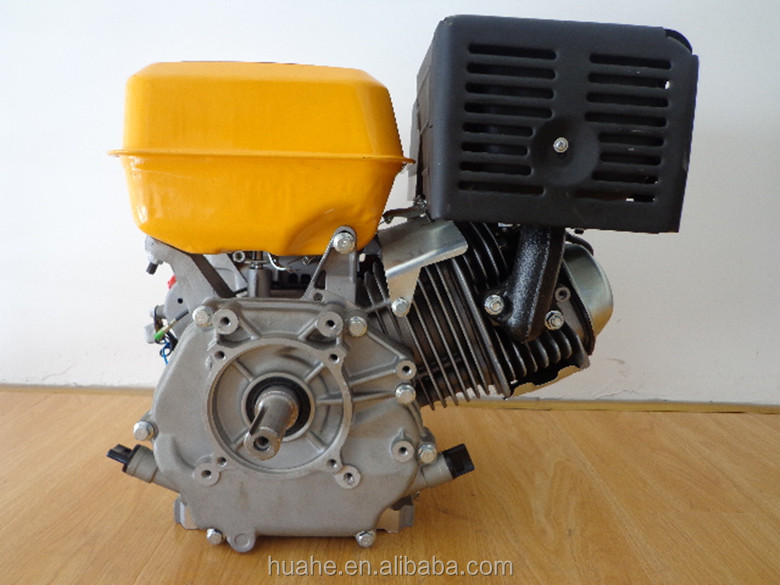

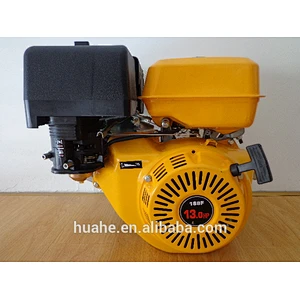

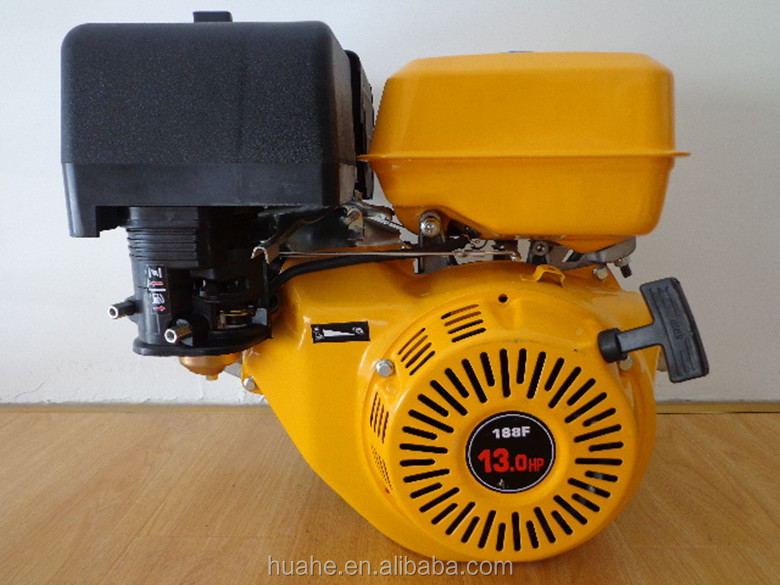

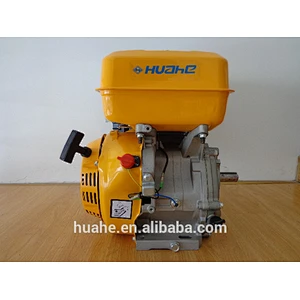

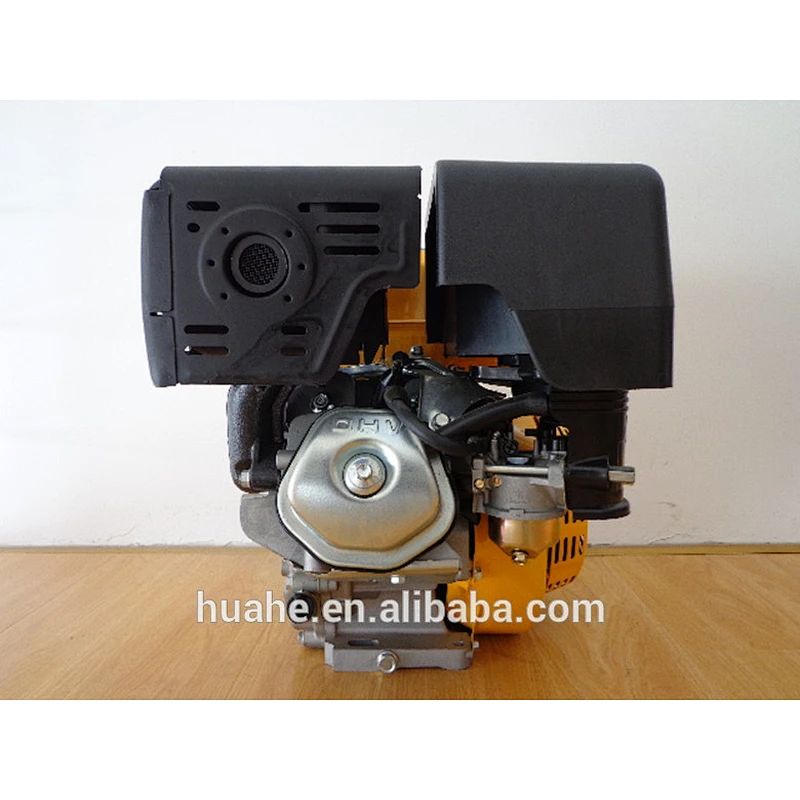

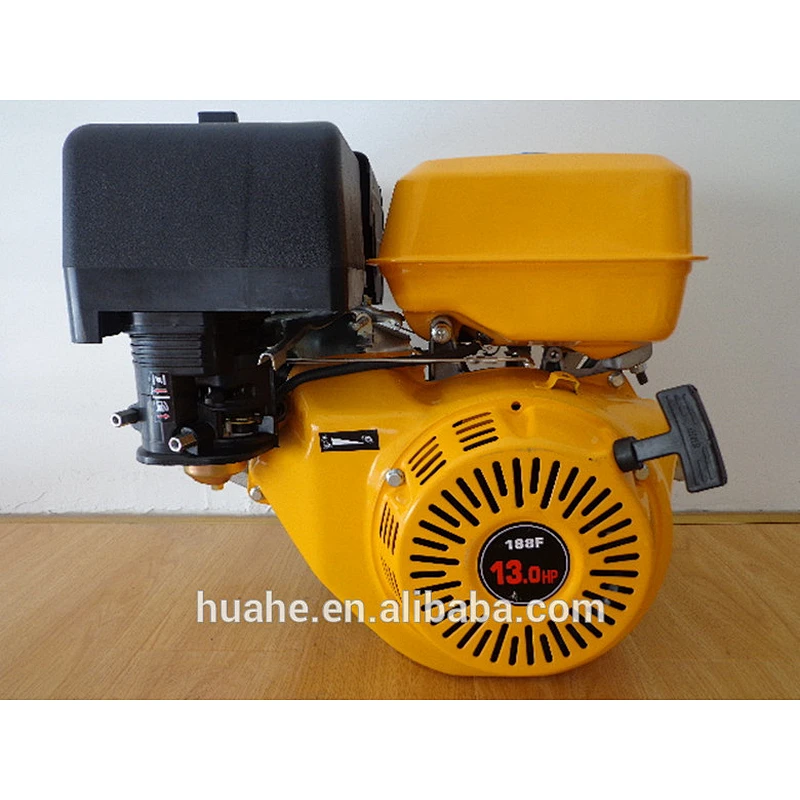

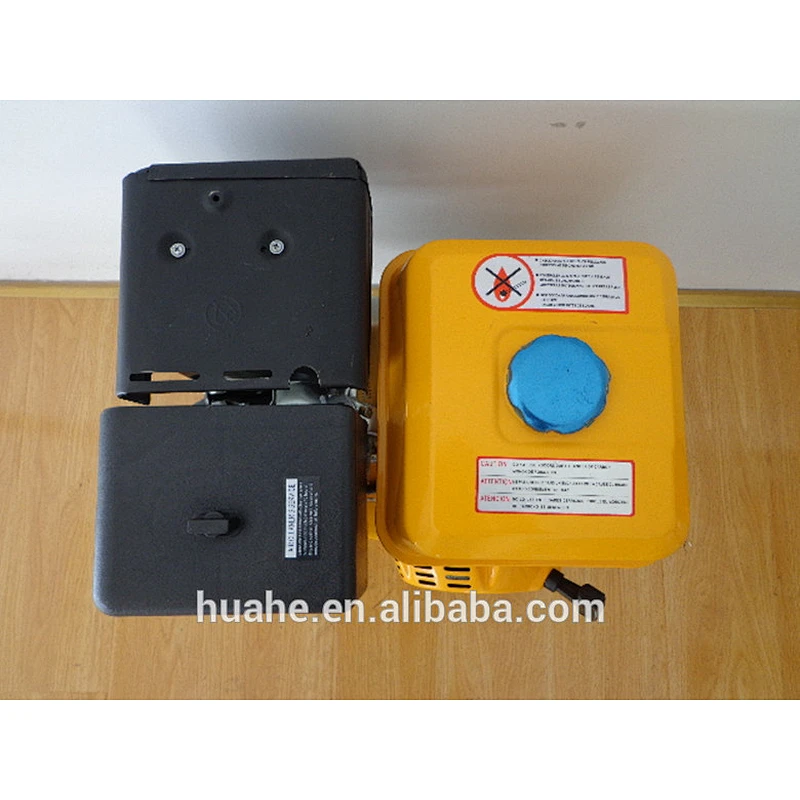

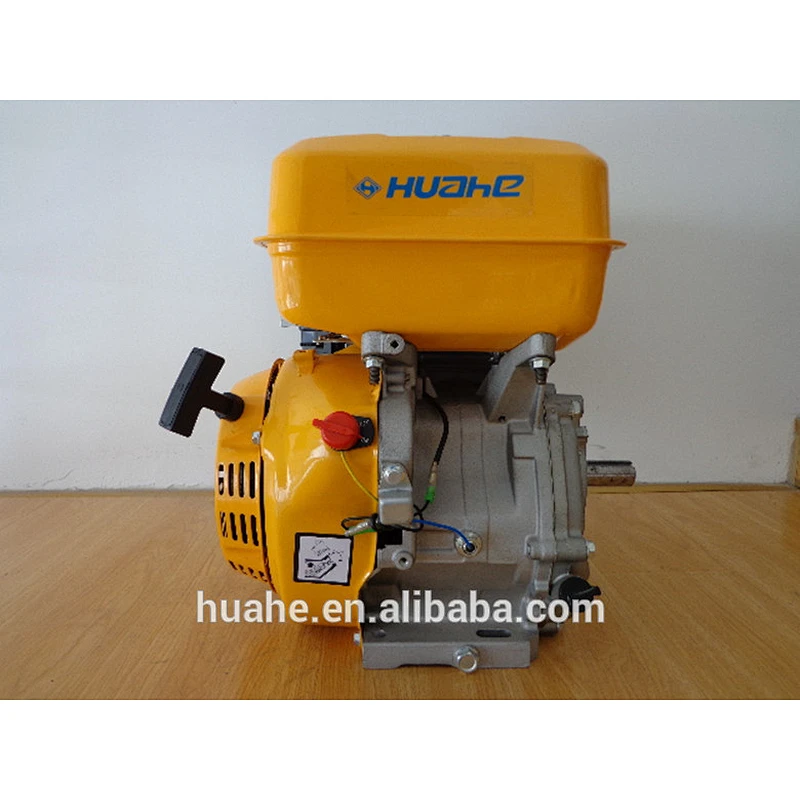

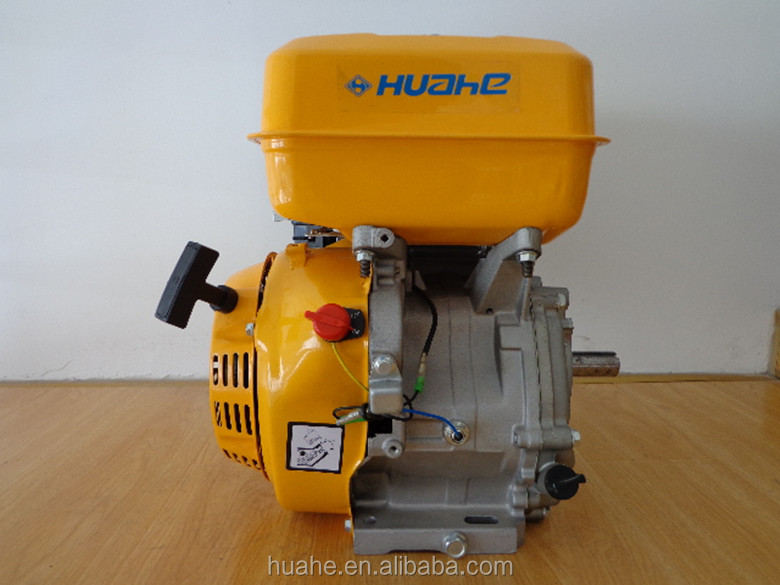

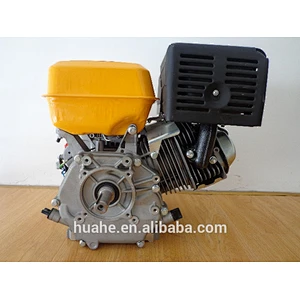

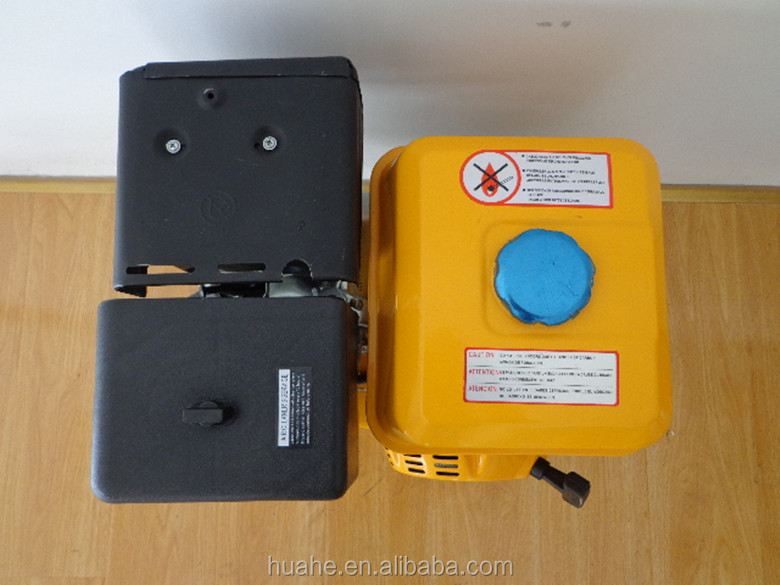

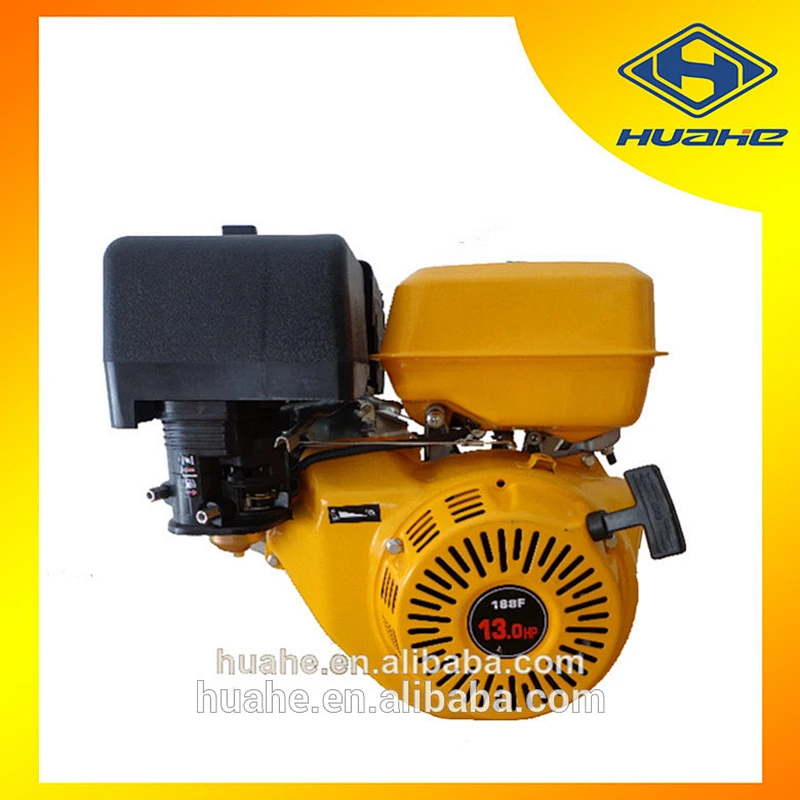

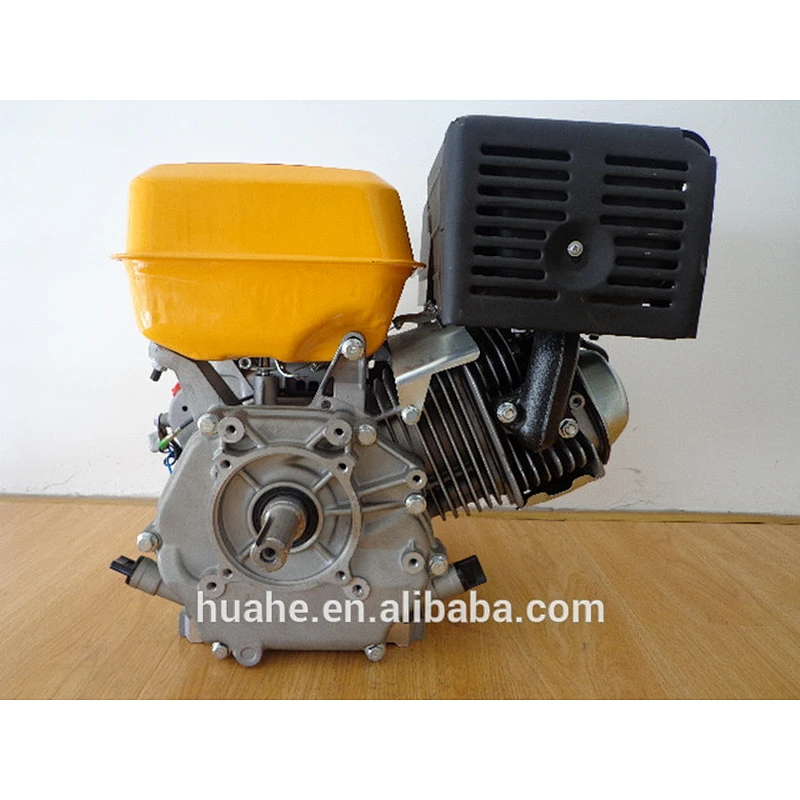

13HP 389cc gasoline engine best,air-cooled generator engine
1.Strong, stable output power
2.Low fuel consumption
3.Reliable operation
4.Convenient start
5.Low noise, low vibration
Model | HH188 |
Engine type | Air-cooled 4 stroke OHV single cylinder |
Bore×Stroke | 88mm×64mm |
Displacement | 389cc |
Compression ratio | 8:1 |
Max power output | 13HP/3600rpm |
Max torque | 26.4N.m/2500rpm |
Ignition system | Non-contact transistorized ignition (TCI) |
Start mode | Recoil start/Electric start |
Air cleaner | Semi-dry, oil bath, dual, double silent and cyclone type |
Fuel tank capacity | 6.5L |
Fuel consumption | 325g/HP-hour |
Engine oil capacity | 1.1L |
Dimension (L×W×H) | 510mm×420mm×475mm |
Gross weight | 34kg |
Quantity for container | 240pcs for 20GP/600pcs for 40HQ |
(air-cooled engine,13.0hp generator engine;air-cooled engine,13.0hp generator engine;air-cooled engine,13.0hp generator engine;air-cooled engine,13.0hp generator engine;air-cooled engine,13.0hp generator engine;air-cooled engine,13.0hp generator engine;air-cooled engine,13.0hp generator engine;air-cooled engine,13.0hp generator engine;)
