- Place of Origin:CN;ZHE
- Output Type:AC Three Phase
- Brand Name:HUAHE
- Rated Power:5KW
- Rated Voltage:230V/120V
- Rated Current:18.3A
- Frequency:50/60HZ
- Speed:1500RPM
- Model Number:5GF-B
- Type:Silent

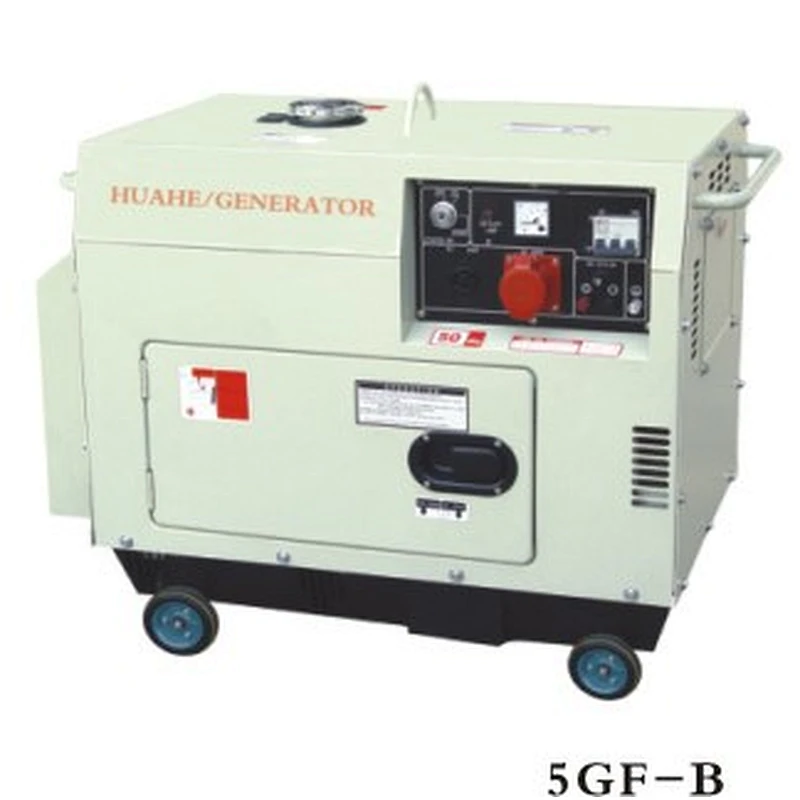

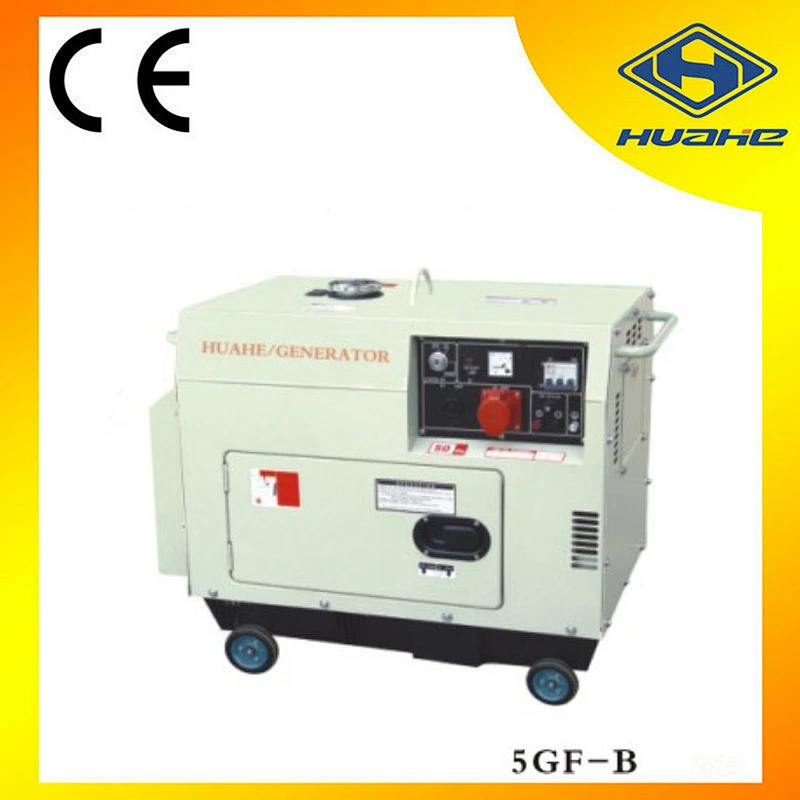

5.5kva silent diesel generator set/cheap diesel generator/diesel power generator used
Our 5.5kVA Silent Diesel Generator Set is a cost-effective, high-performance device. The set has a powerful 3000rpm air-cooled engine and a low noise level of only 70dB. This generator is safe and easy to use, with a key start and automatic voltage regulation. It comes equipped with a heavy-duty chassis and has a compact design that makes it easy to transport and store. It is ideal for use in households, businesses, and outdoor settings where electricity is not readily available, or as a backup power source in case of power outages. This generator set can solve problems such as power cuts and electricity shortages, providing consistent and reliable power for all your needs.
| Model | Economical type | Luxury type | Silent type | ||||||||||||||||
| 2GF-L | 3GF-L | 5GF-L | 2GF-LH(E) | 3GF-LH(E) | 5GF-LH(E) | 3GF-LDE | 5GF-LDE | ||||||||||||
| GENERATOR | Type | Revolving field type 2 pole generator | |||||||||||||||||
| Frequency(HZ) | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | |||
| Cont.Output(KW) | 1.7 | 2 | 2.8 | 3.3 | 4.2 | 5 | 1.7 | 2 | 2.8 | 3.3 | 4.2 | 5 | 2.8 | 3.3 | 4.2 | 5 | |||
| Voltage(A.C)(V) | 230 | 240(120) | 230 | 240(120) | 230 | 240(120) | 260 | 240(120) | 230 | 240(120) | 230 | 240(120) | 230 | 240(120) | 230 | 240(120) | |||
| Current(A.C)(A) | 7.4 | 8.3(16.7) | 12.2 | 13.8(27.5) | 18.3 | 20.8(41.7) | 7.4 | 8.3(16.7) | 12.2 | 13.8(27.5) | 18.3 | 20.8(41.7) | 12.2 | 13.8(27.5) | 18.3 | 20.8(41.7) | |||
| Engine Speed(r/min) | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | |||
| Phase | Single phase | ||||||||||||||||||
| Power factor(COS) | 1 | ||||||||||||||||||
| Excitation system | Controlled Constant Self-excitation | ||||||||||||||||||
| D.C output V/A | 12V/8.3A | ||||||||||||||||||
| Operation Capacity | 12 hour Constant Operation | ||||||||||||||||||
| Coupling Pattern | Straight shaft coupling | ||||||||||||||||||
| Model | 170FG | 178FG | 186FG | 170FG(E) | 178FG(E) | 186FG(E) | 178FG(E) | 186FG(E) | |||||||||||
| ENGINE | Type | Direct injection Vertical,4-cycle,air-cooled diesel engine | |||||||||||||||||
| Displacement(cu.in) | 211(12.88) | 296(18.06) | 406(24.78) | 211(12.88) | 296(18.06) | 406(24.78) | 296(18.06) | 406(24.78) | |||||||||||
| Max.output(KW/rpm) | 2.8 | 3.1 | 4.4 | 4.6 | 6.6 | 7.35 | 2.8 | 3.1 | 4.4 | 4.6 | 6.6 | 7.35 | 4.4 | 4.6 | 6.6 | 7.35 | |||
| Cont.output(KW/rpm) | 2.5 | 2.8 | 4 | 4.4 | 5.9 | 6.6 | 2.5 | 2.8 | 4 | 4.4 | 5.9 | 6.6 | 4 | 4.4 | 5.9 | 6.6 | |||
| Starting system | Recoil | LE:Electric LH:Recoil | Electric | ||||||||||||||||
| Governor system | Centrfugal weight system | ||||||||||||||||||
| Fuel | Diesel Light fuel(BS-AL or equivalent) | ||||||||||||||||||
| Fuel tank capacity(L) | 2.5 | 3.5 | 5.5 | 7.5 | 13.55 | 15 | 13.5 | 16 | |||||||||||
| Lube oil capacity(L) | 0.8 | 1.1 | 1.65 | 0.8 | 1.1 | 1.65 | 1.1 | 1.65 | |||||||||||
| Bore x Stroke(mm) | 70×55 | 78×62 | 86×70 | 70×55 | 78×62 | 86×70 | 78×62 | 86×70 | |||||||||||
| Protection System | Low oil,Warning System/Stop Device(not for L-series) | ||||||||||||||||||
| UNIT | Noise level at 7m dB(A) | 79 | 82 | 85 | 79 | 82 | 85 | 70 | |||||||||||
| Dimensions(L×W×H)mm | 575×400×500 | 640×480×530 | 720×480×580 | 575×400×500 | 640×480×530 | 720×480×580 | 840×520×640 | 905×520×680 | |||||||||||
| Dry weight(kg) | 46 | 61 | 95 | LE:70LH:65 | LE:85LH:80 | LE:100LH:95 | 126 | 165 | |||||||||||
(silent diesel generator used,diesel power generator used,cheap diesel generator,5.5kva silent diesel generator set;silent diesel generator used,diesel power generator used,cheap diesel generator,5.5kva silent diesel generator set;silent diesel generator used,diesel power generator used,cheap diesel generator,5.5kva silent diesel generator set;silent diesel generator used,diesel power generator used,cheap diesel generator,5.5kva silent diesel generator set;silent diesel generator used,diesel power generator used,cheap diesel generator,5.5kva silent diesel generator set;silent diesel generator used,diesel power generator used,cheap diesel generator,5.5kva silent diesel generator set;silent diesel generator used,diesel power generator used,cheap diesel generator,5.5kva silent diesel generator set;silent diesel generator used,diesel power generator used,cheap diesel generator,5.5kva silent diesel generator set;silent diesel generator used,diesel power generator used,cheap diesel generator,5.5kva silent diesel generator set;silent diesel generator used,diesel power generator used,cheap diesel generator,5.5kva silent diesel generator set;silent diesel generator used,diesel power generator used,cheap diesel generator,5.5kva silent diesel generator set;silent diesel generator used,diesel power generator used,cheap diesel generator,5.5kva silent diesel generator set;silent diesel generator used,diesel power generator used,cheap diesel generator,5.5kva silent diesel generator set;silent diesel generator used,diesel power generator used,cheap diesel generator,5.5kva silent diesel generator set;silent diesel generator used,diesel power generator used,cheap diesel generator,5.5kva silent diesel generator set;silent diesel generator used,diesel power generator used,cheap diesel generator,5.5kva silent diesel generator set;silent diesel generator used,diesel power generator used,cheap diesel generator,5.5kva silent diesel generator set;silent diesel generator used,diesel power generator used,cheap diesel generator,5.5kva silent diesel generator set;silent diesel generator used,diesel power generator used,cheap diesel generator,5.5kva silent diesel generator set;silent diesel generator used,diesel power generator used,cheap diesel generator,5.5kva silent diesel generator set;silent diesel generator used,diesel power generator used,cheap diesel generator,5.5kva silent diesel generator set;silent diesel generator used,diesel power generator used,cheap diesel generator,5.5kva silent diesel generator set;silent diesel generator used,diesel power generator used,cheap diesel generator,5.5kva silent diesel generator set;)
1,Selling Points of the product:
1, Low fuel consumption
2, Silent Type
3, Can be widely used in highways, railways, airports, factories, hospitals

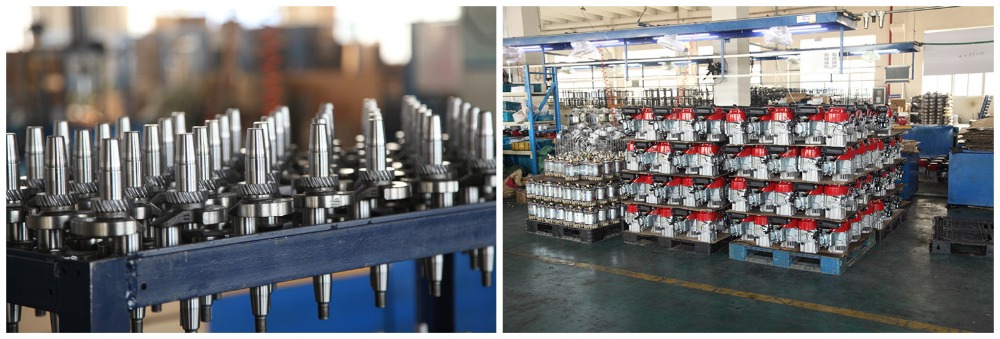

4,60% spare parts are produced by ourselves, such as crankcase, behind frame, fan case, back cover, recoil starter, fuel tank and

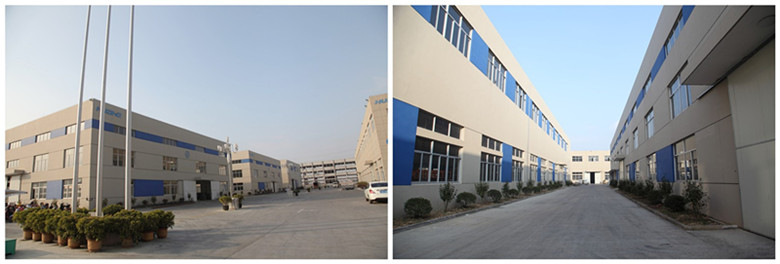

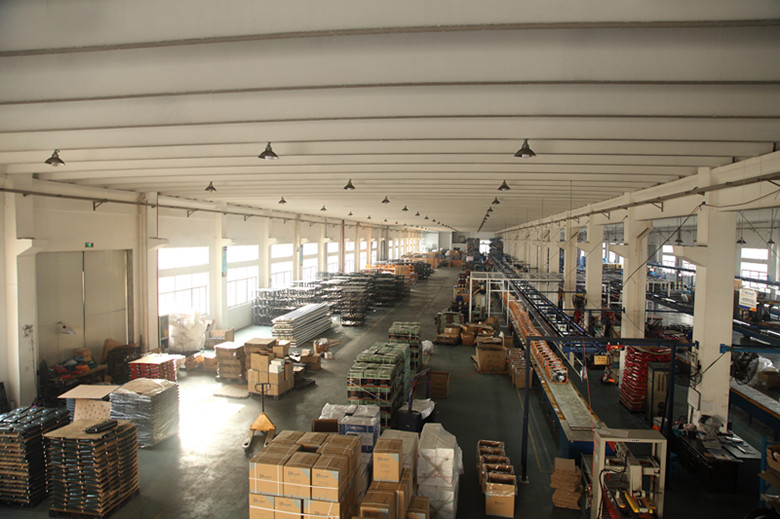

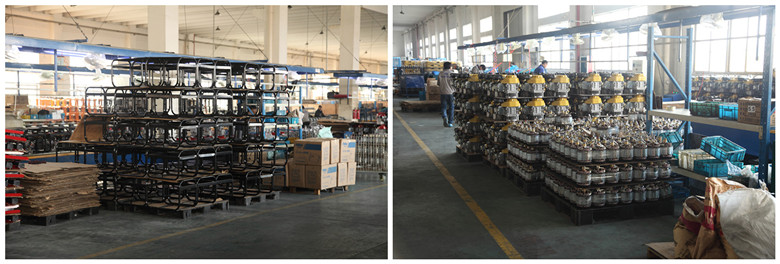

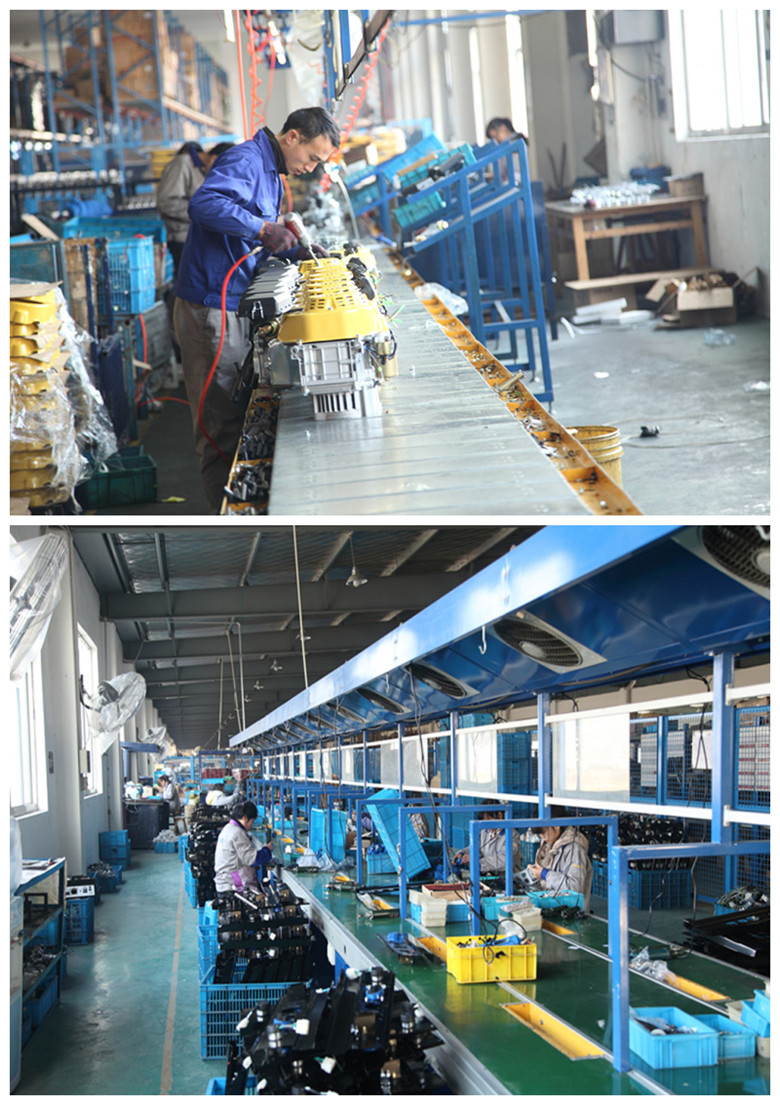

2,Factory Show

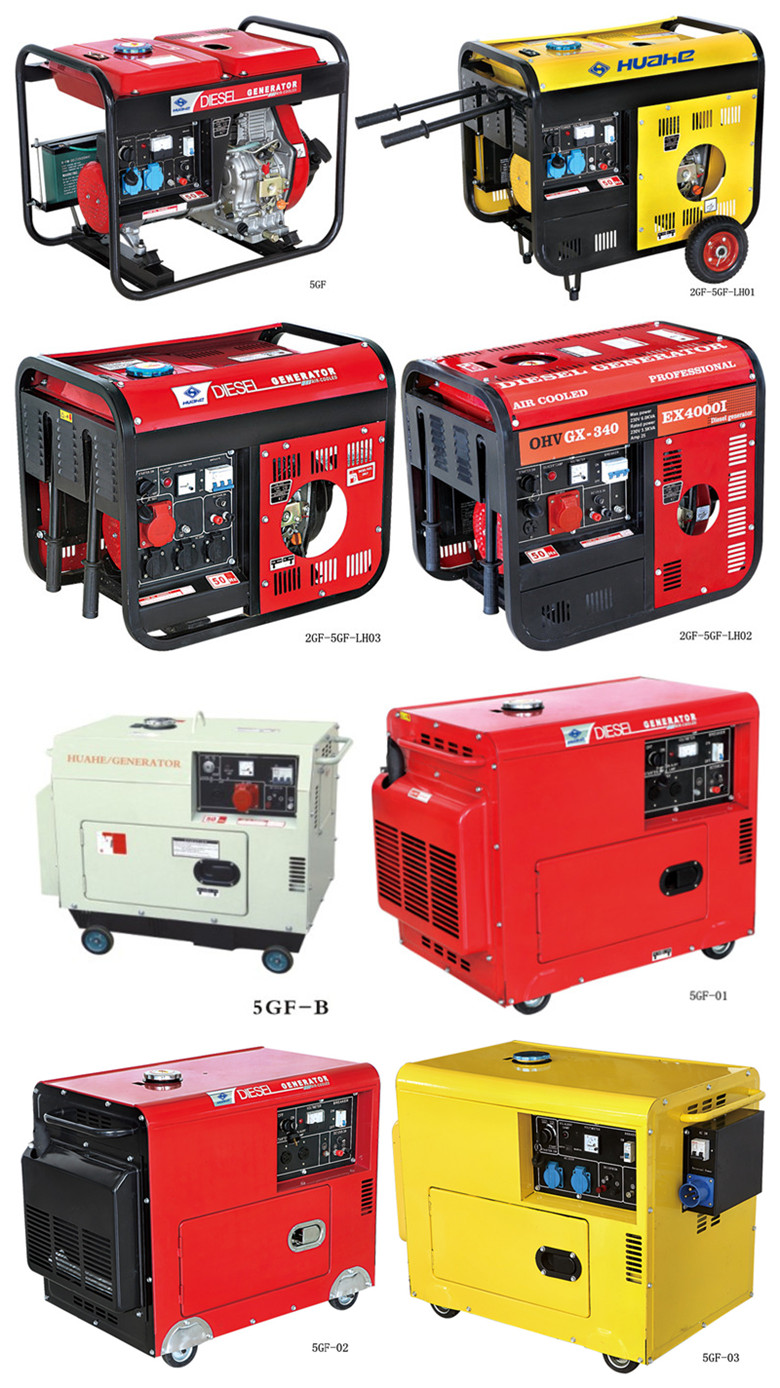

3,The other series

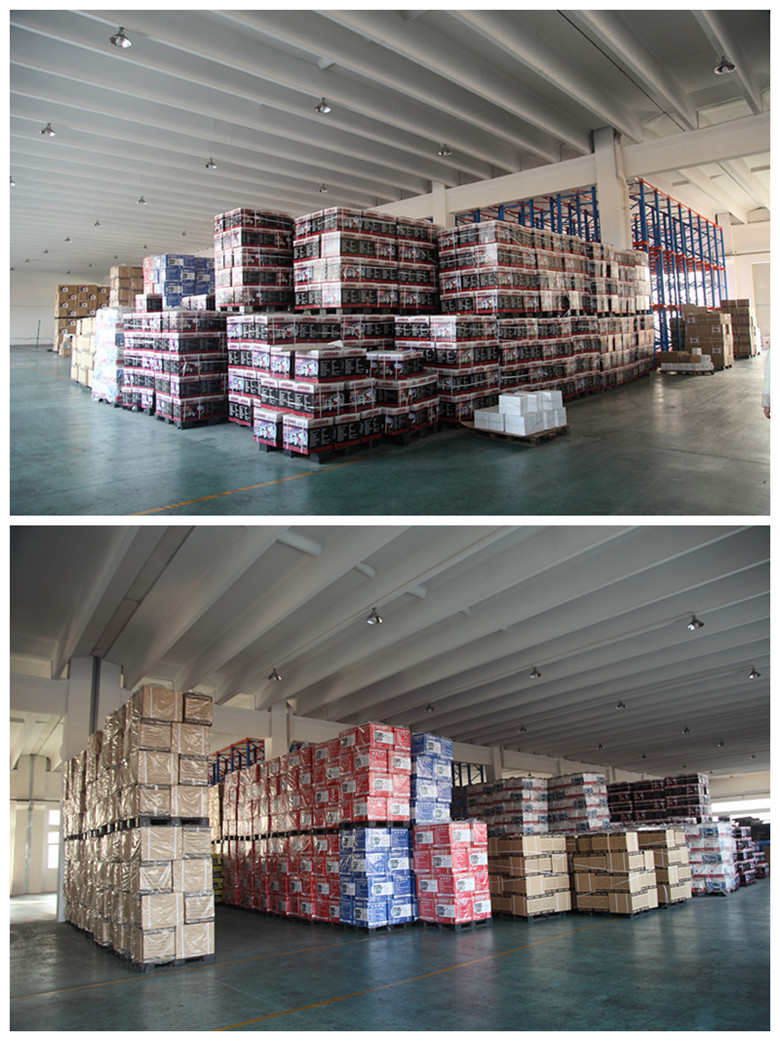

4,Packing
5,Loading
6,Successive exhibition photos

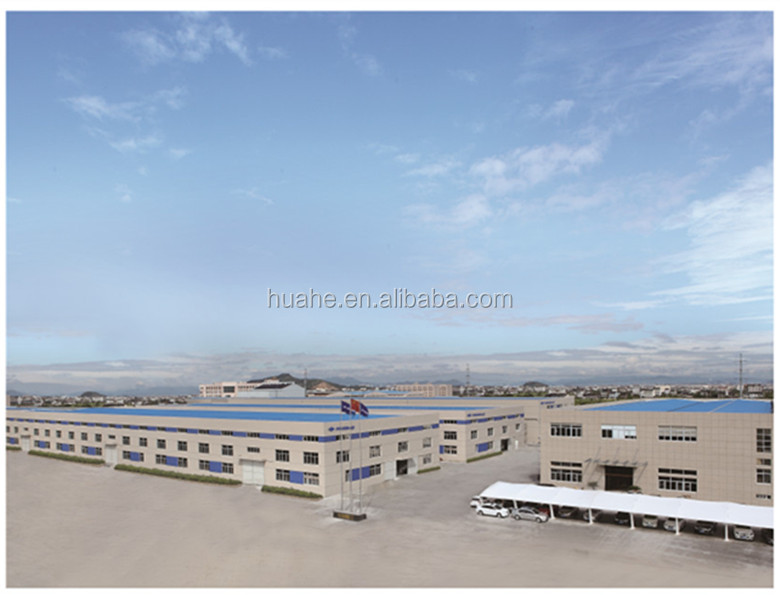

7,Our factory and Product certificate
Advantages:
1.We specialized in all kinds of generators and forklift for 24 years.
2.A well-organized leader team.
3.The reliable service after sales
4.OEM is avaliable.
5.Trade manager is almost online 24 hours
