- Place of Origin:CN;ZHE
- Output Type:AC Single Phase
- Brand Name:HUAHE
- Rated Power:5000W
- Rated Voltage:230V
- Rated Current:18.3A
- Frequency:50/60HZ
- Speed:1500RPM
- Model Number:5GF-B02
- Type:Silence

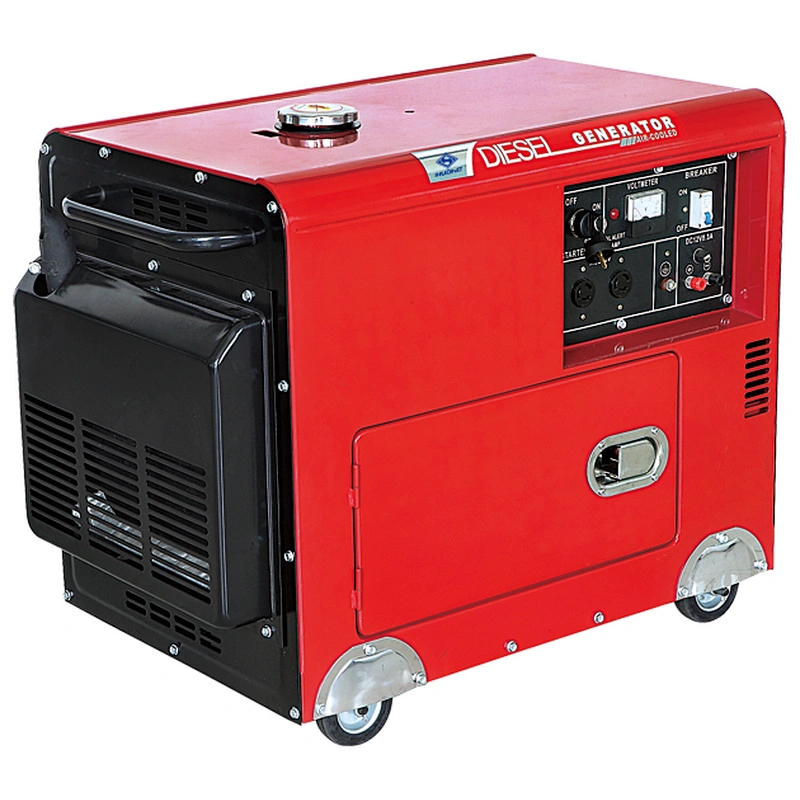

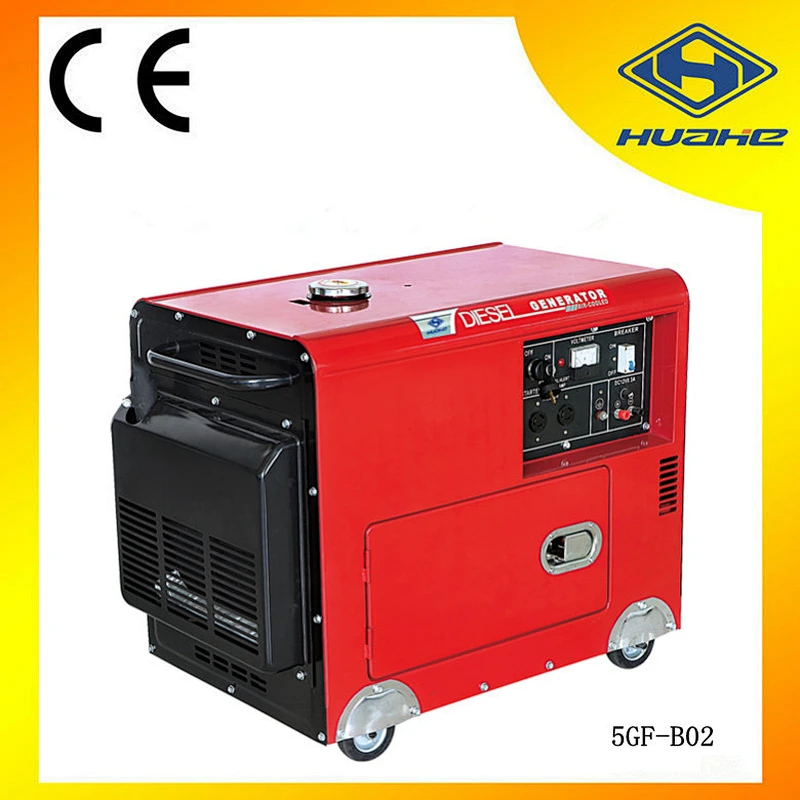

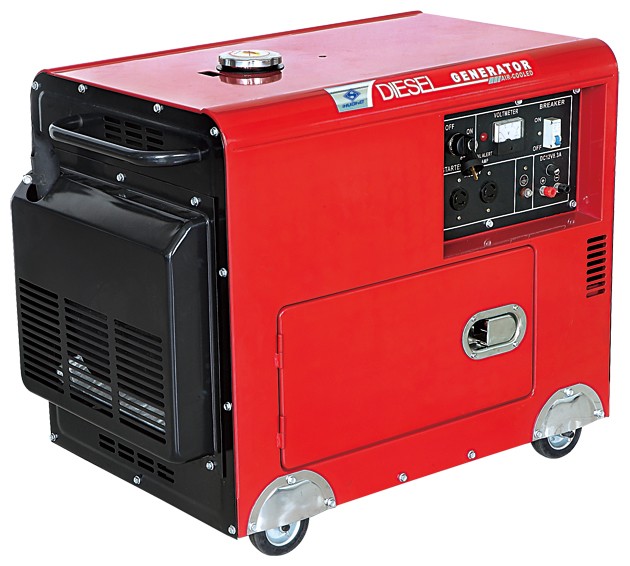

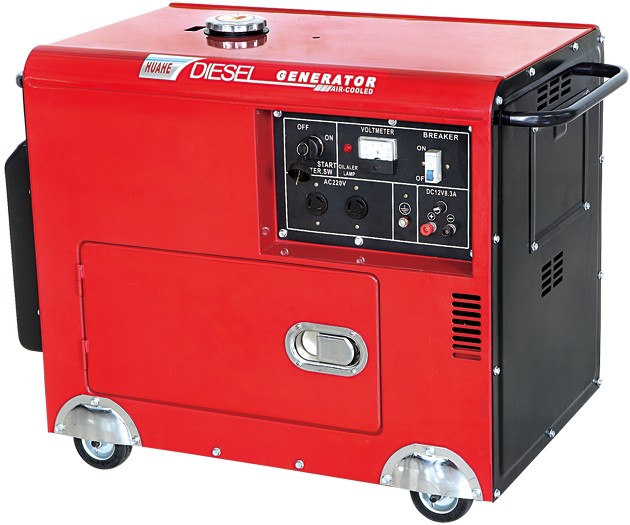

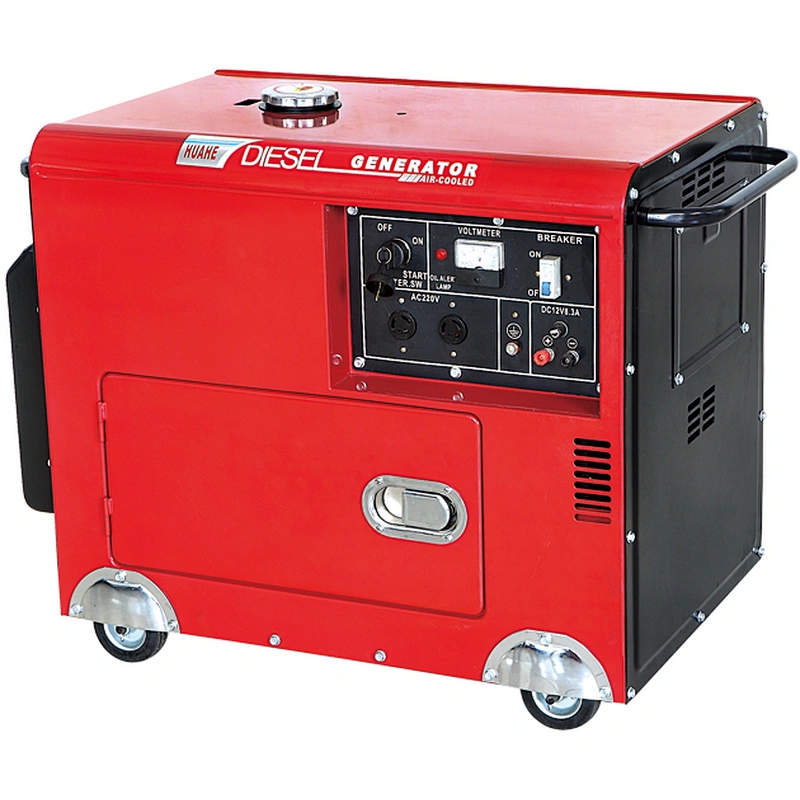

electric 5kv diesel generator/low price soundproof diesel generator set for sale
Our Electric 5KV Diesel Generator is the perfect solution for anyone who needs reliable and efficient power. With a powerful diesel engine, this generator is capable of providing a steady stream of power, even under heavy load. Additionally, our soundproof design ensures minimal noise pollution, making it ideal for both residential and commercial use. Our generator also boasts low emissions, making it environmentally friendly. This generator is perfect for backup power during a blackout, for powering construction equipment, or as a reliable source of power for your home or business. Invest in our Electric 5KV Diesel Generator and be prepared for any power shortage.
Features
01. Low fuel consumption
02. ultra-low-noise
03. Convenient in operation
04. Long run time - up to 12.5 hours
05. Oil alert to shut down engine automatically when low oil is detected
06. Circuit breaker to stop engine automatically when overloaded
07. Can be widely used in highways, railways, airports, factories, hospitals , and much more
08. CE,ISO9001:2000 certification approved
09. One year or 500 hours warranty
10. Patent design, unique appearance and function
Specifications for this diesel generator:
Model | Silent type | ||
5GF | |||
Generator | Type | Revolving field type 2 pole generator | |
Frequency (Hz) | 50 | 60 | |
Cont. Output (KW) | 4.2 | 5 | |
Voltage (A.C)(V) | 230 | 240 (120) | |
Current (A.C)(A) | 18.3 | 20.8 (41.7) | |
Engine speed (r/min) | 3000 | 3600 | |
Phase | Single phase | ||
Power factor (COSΦ) | 1 | ||
Excitation system | Controlled constant self-excitation | ||
D.C output V/A | 12V/8.3A | ||
Operation capacity | 12 hour constant operation | ||
Coupling pattern | Straight shaft coupling | ||
Model | 186FG(E) | ||
Engine | Type | Direct injection vertical, 4-cycle, air-cooled diesel engine | |
Displacement cc (cu.in) | 406 (24.78) | ||
Max. output (KW/rpm) | 6.6 | 7.35 | |
Cont. output (KW/rpm) | 5.9 | 6.6 | |
Starting system | Electric start | ||
Governor system | Centrifugal weight system | ||
Fuel | Diesel light fuel (BS-AL or equivalent) | ||
Fuel tank capacity (L) | 16 | ||
Lube oil capacity (L) | 1.65 | ||
Bore×Stroke | 86×75 | ||
Protection system | Low oil, warning system/Stop device (not for L-series) | ||
Unit | Noise level at 7m dB (A) | 770 | |
Dimension (L×W×H) (mm) | 950×580×740 | ||
Dry weight (kg) | 157 | ||
Tell us your detailed requirement, to recommend you the right generator model
International certificates approved
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Packaging & Shipping
--------------------------------------------------------------------------------------------------------------------------------------
Each diesel generator set is wrapped in poly bag, then into carton. With Owners Manual in it
Standard colorful carton is available, ready for retail
Our Services
---------------------------------------------------------------------------------------------------------------------------------------------------

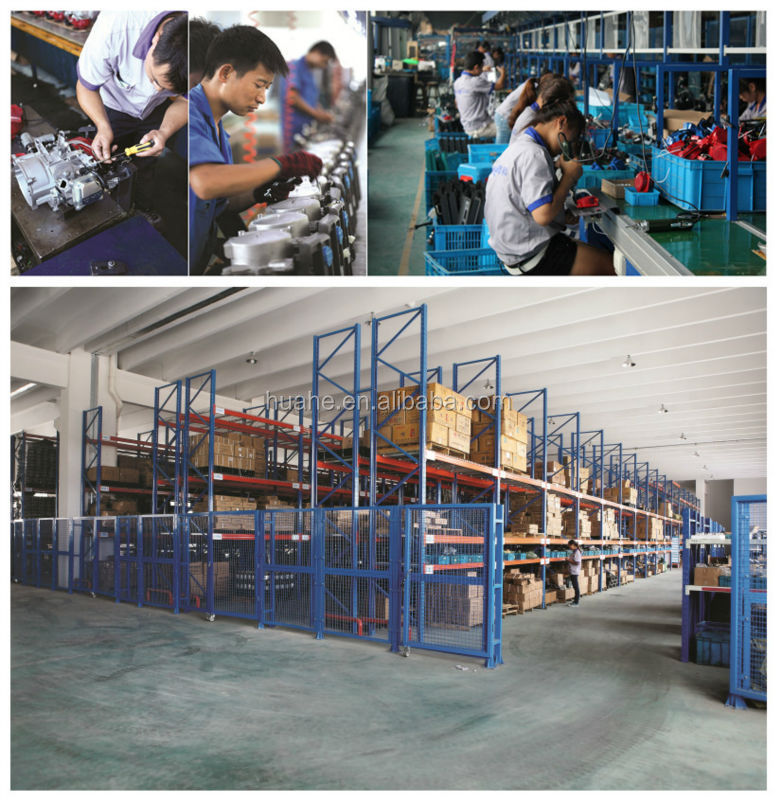

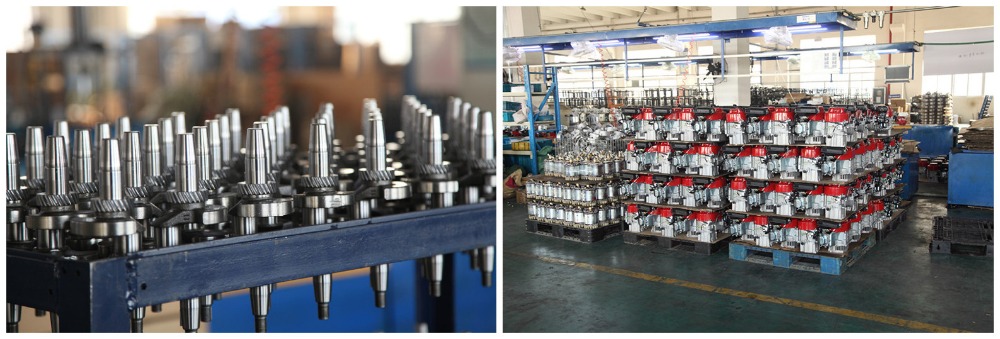

Strict quality control in the whole production, including raw metarial, production site, 100% test before packing.

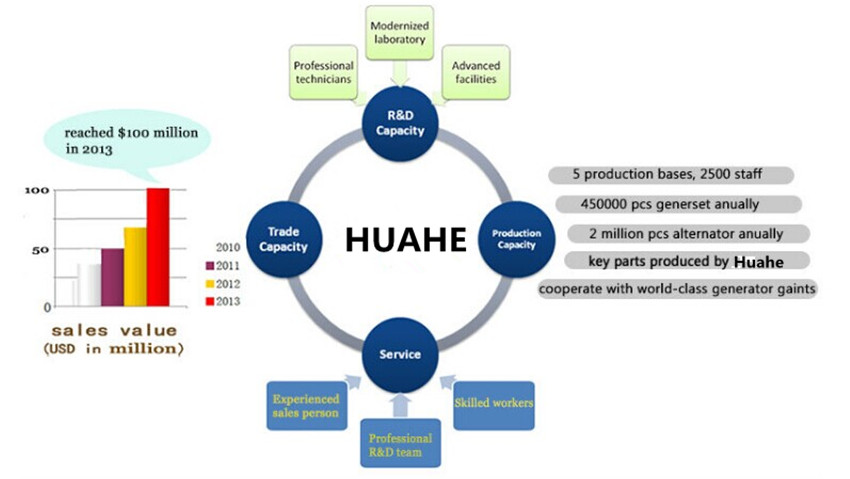

Three reasons for choosing Huahe
-----------------------------------------------------------------
----------------------------------------------------------------------------------------------------------------------------
1 kva -720kva gasoline generator
Professional generator manufactrurer with R&D capacity
Reliable quality, reasonable price, desirable service
Tell us your demand, provide what you want
Contact us now, let's make a deal.........

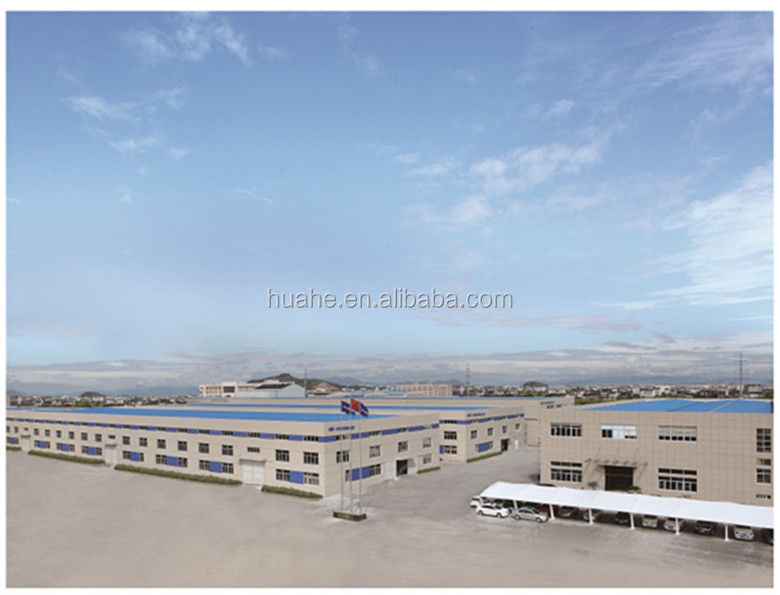

Wlcome to Our Company
