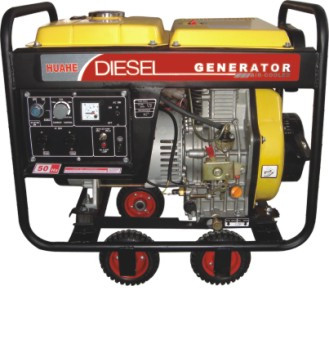

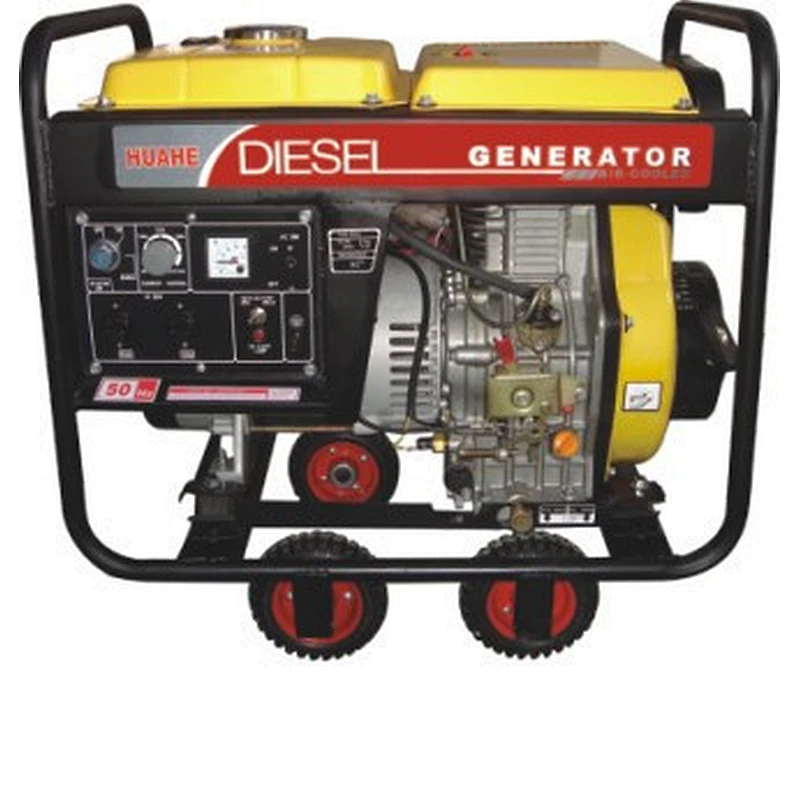

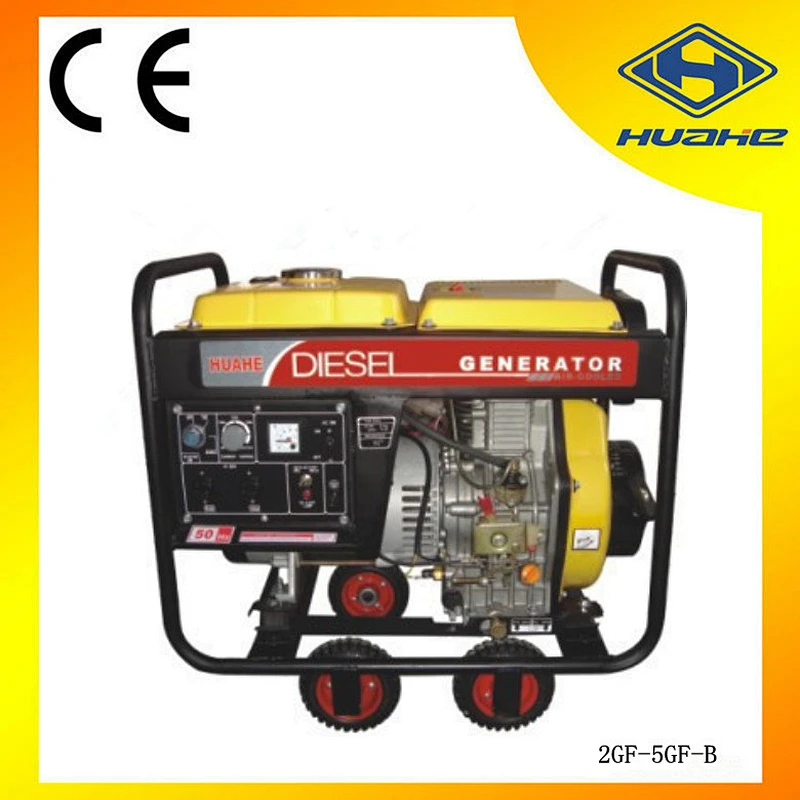

HUAHE(CHINA)Chinese Factory Price Electric Diesel Generator 2kw, Diesel Generator 2kva
HUAHE(CHINA) Electric Diesel Generator 2kw is perfect for homes and small businesses looking for backup power, camping trips, and outdoor events. With a powerful diesel engine, this generator provides reliable power in all conditions. The compact size and easy-to-use controls make it a versatile choice for any situation. The generator also features low noise emissions, ensuring quiet operation no matter where it’s used. Plus, the factory price ensures affordability for all customers. Secure your backup power with HUAHE(CHINA) Electric Diesel Generator 2kw.
Features

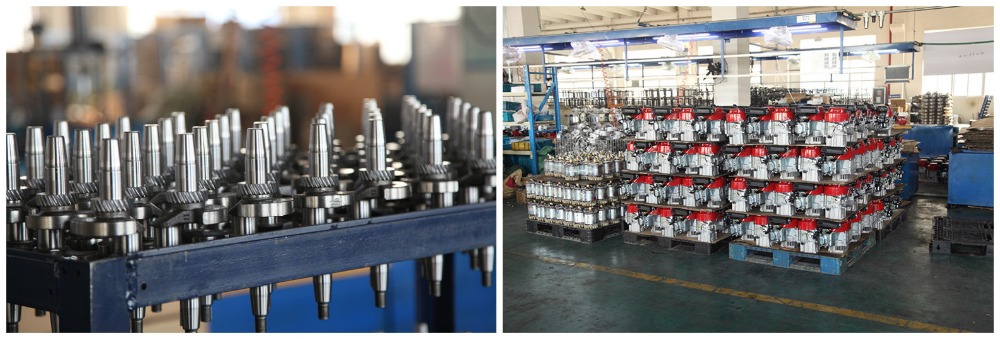

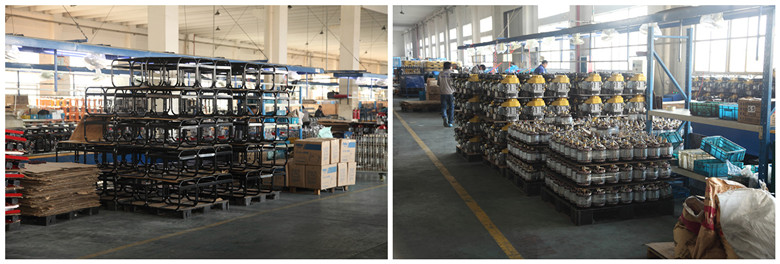

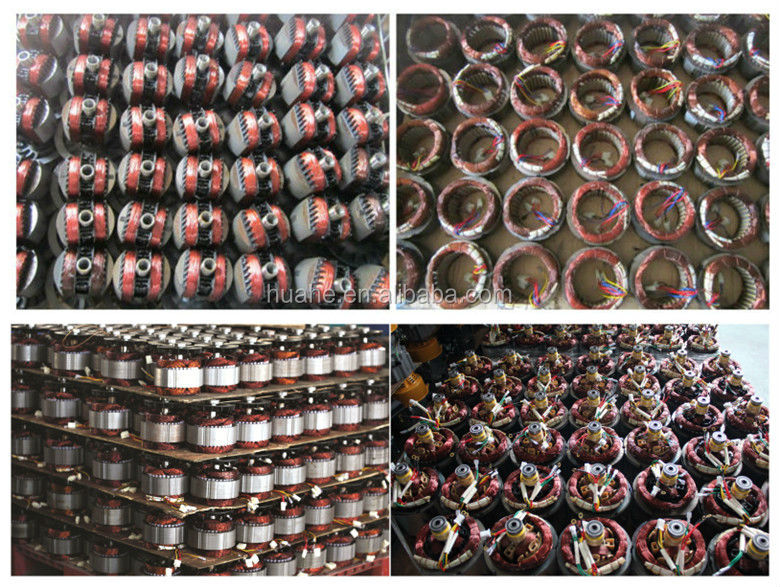

01. 60% spare parts are produced by ourselves, such as crankcase, behind frame, fan case, back cover
02.Engine:The effective intake and combustion of overhead valve,with easy starting and automatic decompression device;quick response of speed governor;stable transistor ignition system;excellent bearing performance,low vibration of the aluminum connect rod.
03.Silencer:Use the large silencer produced by patented technology,to minimize the noise.
04.Oil alert:Oil level under the level line,the engine stops working automatically.
05.Automatic voltage adjustor:Keeping the voltage stable is especially important for sensitive equipment.
06.Fuel meter:Show the varietal of fuel accurately.

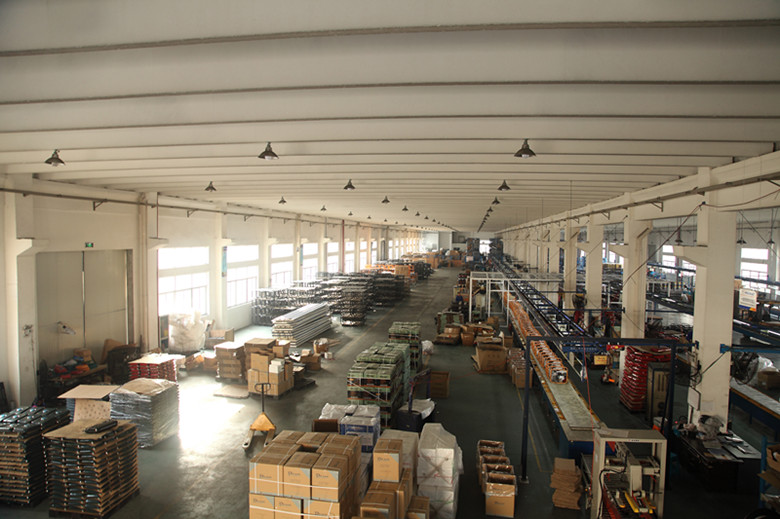

07. The workshop of the factory, hospital, school, and much more

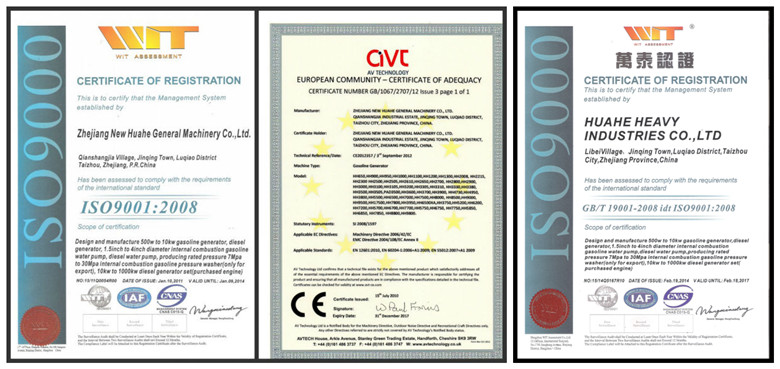

08. CE,ISO9001:2000 certification approved
09. One year or 500 hours warranty
10. Patent design, unique appearance and function
Specifications for this diesel generator:
Model | Economical type | Luxury type | Silent type | ||||||||||||||
| 2GF-L | 3GF-L | 5GF-L | 2GF-LH(E) | 3GF-LH(E) | 5GF-LH(E) | 3GF-LDE | 5GF-LDE | ||||||||||
| GENERATOR | Type | Revolving field type 2 pole generator | |||||||||||||||
| Frequency(HZ) | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | |
| Cont.Output(KW) | 1.7 | 2 | 2.8 | 3.3 | 4.2 | 5 | 1.7 | 2 | 2.8 | 3.3 | 4.2 | 5 | 2.8 | 3.3 | 4.2 | 5 | |
| Voltage(A.C)(V) | 230 | 240(120) | 230 | 240(120) | 230 | 240(120) | 260 | 240(120) | 230 | 240(120) | 230 | 240(120) | 230 | 240(120) | 230 | 240(120) | |
| Current(A.C)(A) | 7.4 | 8.3(16.7) | 12.2 | 13.8(27.5) | 18.3 | 20.8(41.7) | 7.4 | 8.3(16.7) | 12.2 | 13.8(27.5) | 18.3 | 20.8(41.7) | 12.2 | 13.8(27.5) | 18.3 | 20.8(41.7) | |
| Engine Speed(r/min) | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | |
| Phase | Single phease | ||||||||||||||||
| Power factor(COS) | 1 | ||||||||||||||||
| Excitation system | Controlled Constant Self-excitation | ||||||||||||||||
| D.C output V/A | 12V/8.3A | ||||||||||||||||
| Operation Capacity | 12 hour Constant Operation | ||||||||||||||||
| Coupling Pattern | Straight shaft coupling | ||||||||||||||||
| Model | 170FG | 178FG | 186FG | 170FG(E) | 178FG(E) | 186FG(E) | 178FG(E) | 186FG(E) | |||||||||
| ENGINE | Type | Direct injection Vertical,4-cycle,air-cooled diesel engine | |||||||||||||||
| Displacement(cu.in) | 211(12.88) | 296(18.06) | 406(24.78) | 211(12.88) | 296(18.06) | 406(24.78) | 296(18.06) | 406(24.78) | |||||||||
| Max.output(KW/rpm) | 2.8 | 3.1 | 4.4 | 4.6 | 6.6 | 7.35 | 2.8 | 3.1 | 4.4 | 4.6 | 6.6 | 7.35 | 4.4 | 4.6 | 6.6 | 7.35 | |
| Cont.output(KW/rpm) | 2.5 | 2.8 | 4 | 4.4 | 5.9 | 6.6 | 2.5 | 2.8 | 4 | 4.4 | 5.9 | 6.6 | 4 | 4.4 | 5.9 | 6.6 | |
| Starting system | Recoil | LE:Electric LH:Recoil | Electric | ||||||||||||||
| Governor system | Centrfugal weight system | ||||||||||||||||
| Fuel | Diesel Light fuel(BS-AL or equivalent) | ||||||||||||||||
| Fuel tank capacity(L) | 2.5 | 3.5 | 5.5 | 7.5 | 13.55 | 15 | 13.5 | 16 | |||||||||
| Lube oil capacity(L) | 0.8 | 1.1 | 1.65 | 0.8 | 1.1 | 1.65 | 1.1 | 1.65 | |||||||||
| Bore x Stroke(mm) | 70×55 | 78×62 | 86×70 | 70×55 | 78×62 | 86×70 | 78×62 | 86×70 | |||||||||
| Protection System | Low oil,Warning System/Stop Device(not for L-series) | ||||||||||||||||
| UNIT | Noise level at 7m dB(A) | 79 | 82 | 85 | 79 | 82 | 85 | 70 | |||||||||
| Dimensions(L×W×H)mm | 575×400×500 | 640×480×530 | 720×480×580 | 575×400×500 | 640×480×530 | 720×480×580 | 840×520×640 | 905×520×680 | |||||||||
| Dry weight(kg) | 46 | 61 | 95 | LE:70LH:65 | LE:85LH:80 | LE:100LH:95 | 126 | ||||||||||
(2kva diesel generator set,electric start diesel generators;2kva diesel generator set,electric start diesel generators;2kva diesel generator set,electric start diesel generators;2kva diesel generator set,electric start diesel generators;2kva diesel generator set,electric start diesel generators;2kva diesel generator set,electric start diesel generators;2kva diesel generator set,electric start diesel generators;2kva diesel generator set,electric start diesel generators;2kva diesel generator set,electric start diesel generators;2kva diesel generator set,electric start diesel generators;2kva diesel generator set,electric start diesel generators;2kva diesel generator set,electric start diesel generators;2kva diesel generator set,electric start diesel generators;2kva diesel generator set,electric start diesel generators;2kva diesel generator set,electric start diesel generators;2kva diesel generator set,electric start diesel generators;2kva diesel generator set,electric start diesel generators;2kva diesel generator set,electric start diesel generators;2kva diesel generator set,electric start diesel generators;2kva diesel generator set,electric start diesel generators;2kva diesel generator set,electric start diesel generators;2kva diesel generator set,electric start diesel generators;2kva diesel generator set,electric start diesel generators;)
Tell us your detailed requirement, to recommend you the right generator model
International certificates approved
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------

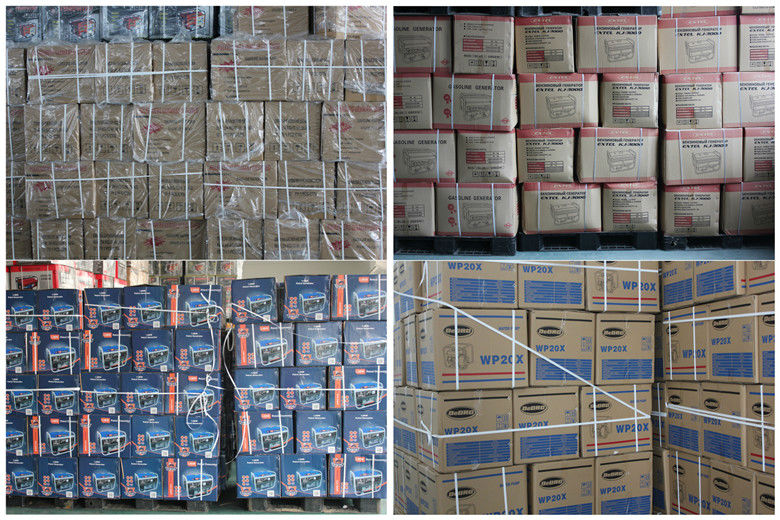

Packaging & Shipping
--------------------------------------------------------------------------------------------------------------------------------------
Each diesel generator set is wrapped in poly bag, then into carton. With Owners Manual in it
Standard colorful carton is available, ready for retail
Our Services
---------------------------------------------------------------------------------------------------------------------------------------------------
Strict quality control in the whole production, including raw metarial, production site, 100% test before packing.
Three reasons for choosing Huahe
-----------------------------------------------------------------
-----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
1 kva -720kva gasoline generator

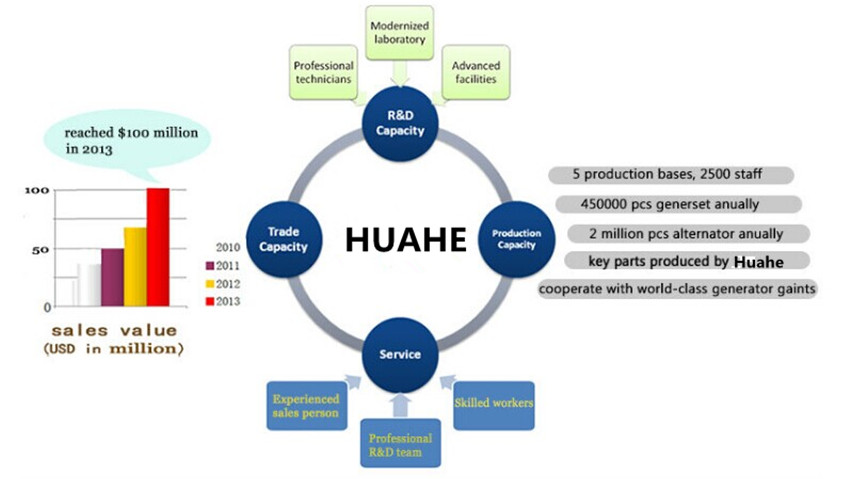

Professional generator manufactrurer with R&D capacity
Reliable quality, reasonable price, desirable service
Tell us your demand, provide what you want
Contact us now, let's make a deal.........
