Reliable supplier 5 kw 5kv diesel generator, 5kva 220v 50hz generator with diesel
This 5KW 5KV diesel generator features a powerful engine that can provide up to 5 hours of continuous power at full capacity. It operates quietly and efficiently, making it ideal for use in residential areas. Its compact design and portability make it easy to transport and store when not in use. The generator has protective features such as overloading protection, low oil level shutdown, and automatic voltage regulation to ensure safe and stable operation. Suitable for homes, small businesses, outdoor events, and construction sites, this generator provides a reliable and convenient power supply.
Features

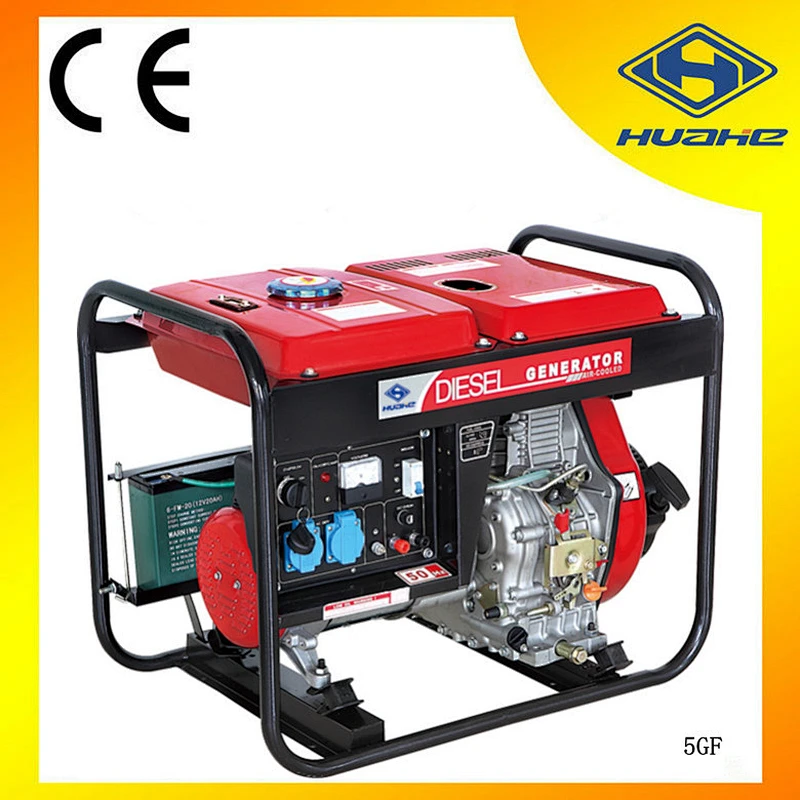

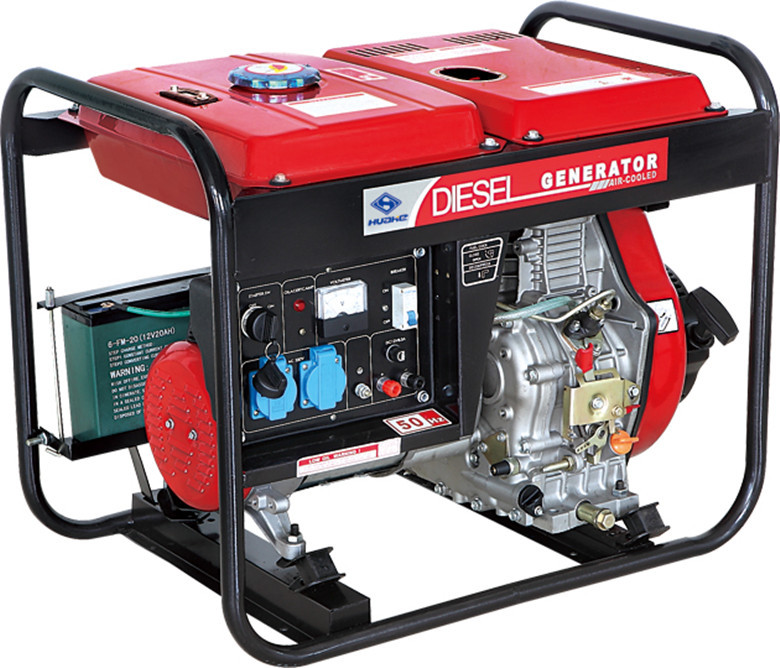

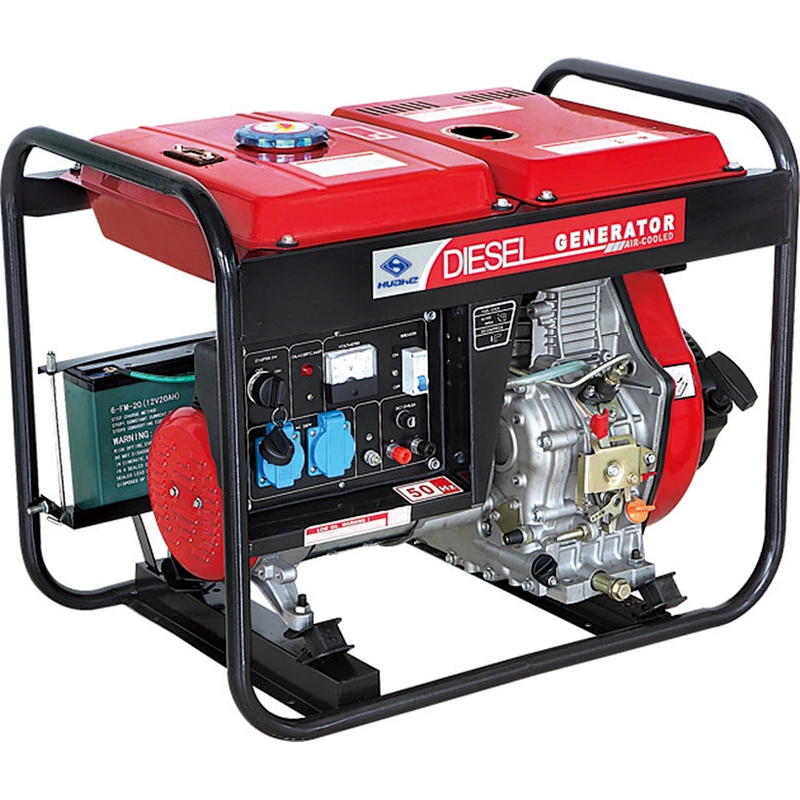

5KW Open Type Key Start Diesel Generator Set with Battery
01. Reliable and durable
02. Low fault because of no ignition
03. Convenient in operation
04. Long run time - up to 12.5 hours
05.Engine:The effective intake and combustion of overhead valve,with easy starting and automatic decompression device;quick response of speed governor;stable transistor ignition system;excellent bearing performance,low vibration of the aluminum connect rod
06.Oil alert:Oil level under the level line,the engine stops working automatically
07.Automatic voltage adjustor:Keeping the voltage stable is especially important for sensitive equipment
08.Fuel meter:Show the varietal of fuel accurately
09. Can be widely used in highways, railways, airports, factories, hospitals , and much more
10. CE,ISO9001:2000 certification approved
11. One year or 500 hours warranty
12. Patent design, unique appearance and function
Specifications for this diesel generator:
Model | Economical type | ||
5GF | |||
Generator | Type | Revolving field type 2 pole generator | |
Frequency (Hz) | 50 | 60 | |
Cont. Output (KW) | 4.2 | 5 | |
Voltage (A.C)(V) | 230 | 240 (120) | |
Current (A.C)(A) | 18.3 | 20.8 (41.7) | |
Engine speed (r/min) | 3000 | 3600 | |
Phase | Single phase | ||
Power factor (COSΦ) | 1 | ||
Excitation system | Controlled constant self-excitation | ||
D.C output V/A | 12V/8.3A | ||
Operation capacity | 12 hour constant operation | ||
Coupling pattern | Straight shaft coupling | ||
Model | 186FG | ||
Engine | Type | Direct injection vertical, 4-cycle, air-cooled diesel engine | |
Displacement cc (cu.in) | 406(24.78) | ||
Max. output (KW/rpm) | 6.6 | 7.35 | |
Cont. output (KW/rpm) | 5.9 | 6.6 | |
Starting system | Recoil start/ Electric start | ||
Governor system | Centrifugal weight system | ||
Fuel | Diesel light fuel (BS-AL or equivalent) | ||
Fuel tank capacity (L) | 5.5L | ||
Lube oil capacity (L) | 1.65 | ||
Bore×Stroke | 86×70 | ||
Protection system | Low oil, warning system/Stop device (not for L-series) | ||
Unit | Noise level at 7m dB (A) | 85 | |
Dimension (L×W×H) (mm) | 745×480×615 | ||
Dry weight (kg) | 95 | ||
(5kva 220v 50hz generator with diesel,Reliable supplier 5 kw 5kv diesel generator,5 kw diesel generator;5kva 220v 50hz generator with diesel,Reliable supplier 5 kw 5kv diesel generator,5 kw diesel generator;5kva 220v 50hz generator with diesel,Reliable supplier 5 kw 5kv diesel generator,5 kw diesel generator;5kva 220v 50hz generator with diesel,Reliable supplier 5 kw 5kv diesel generator,5 kw diesel generator;5kva 220v 50hz generator with diesel,Reliable supplier 5 kw 5kv diesel generator,5 kw diesel generator;5kva 220v 50hz generator with diesel,Reliable supplier 5 kw 5kv diesel generator,5 kw diesel generator;5kva 220v 50hz generator with diesel,Reliable supplier 5 kw 5kv diesel generator,5 kw diesel generator;5kva 220v 50hz generator with diesel,Reliable supplier 5 kw 5kv diesel generator,5 kw diesel generator;5kva 220v 50hz generator with diesel,Reliable supplier 5 kw 5kv diesel generator,5 kw diesel generator;5kva 220v 50hz generator with diesel,Reliable supplier 5 kw 5kv diesel generator,5 kw diesel generator;5kva 220v 50hz generator with diesel,Reliable supplier 5 kw 5kv diesel generator,5 kw diesel generator;5kva 220v 50hz generator with diesel,Reliable supplier 5 kw 5kv diesel generator,5 kw diesel generator;5kva 220v 50hz generator with diesel,Reliable supplier 5 kw 5kv diesel generator,5 kw diesel generator;5kva 220v 50hz generator with diesel,Reliable supplier 5 kw 5kv diesel generator,5 kw diesel generator;5kva 220v 50hz generator with diesel,Reliable supplier 5 kw 5kv diesel generator,5 kw diesel generator;5kva 220v 50hz generator with diesel,Reliable supplier 5 kw 5kv diesel generator,5 kw diesel generator;5kva 220v 50hz generator with diesel,Reliable supplier 5 kw 5kv diesel generator,5 kw diesel generator;5kva 220v 50hz generator with diesel,Reliable supplier 5 kw 5kv diesel generator,5 kw diesel generator;5kva 220v 50hz generator with diesel,Reliable supplier 5 kw 5kv diesel generator,5 kw diesel generator;5kva 220v 50hz generator with diesel,Reliable supplier 5 kw 5kv diesel generator,5 kw diesel generator;5kva 220v 50hz generator with diesel,Reliable supplier 5 kw 5kv diesel generator,5 kw diesel generator;5kva 220v 50hz generator with diesel,Reliable supplier 5 kw 5kv diesel generator,5 kw diesel generator;5kva 220v 50hz generator with diesel,Reliable supplier 5 kw 5kv diesel generator,5 kw diesel generator;)
Tell us your detailed requirement, to recommend you the right generator model
International certificates approved
Packaging & Shipping
Each gasoline generator set is wrapped in poly bag, then into carton. With Owners Manual in it
Standard colorful carton is available, ready for retail
Our Services

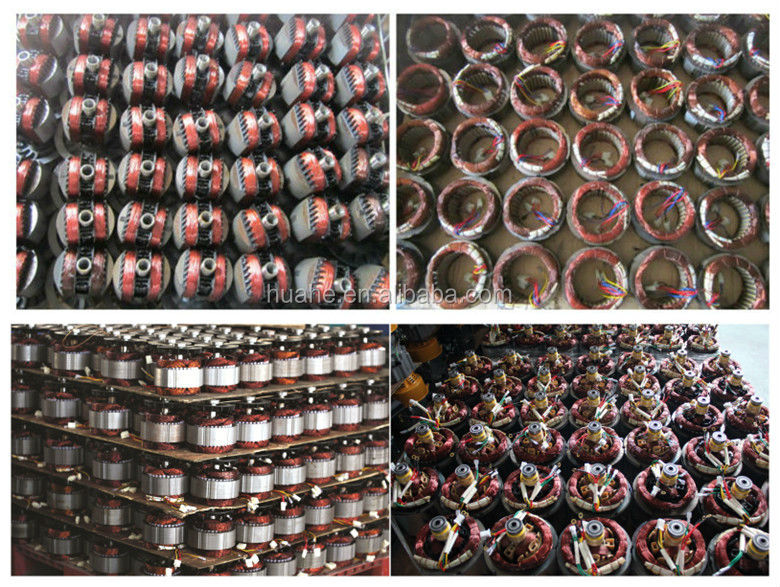

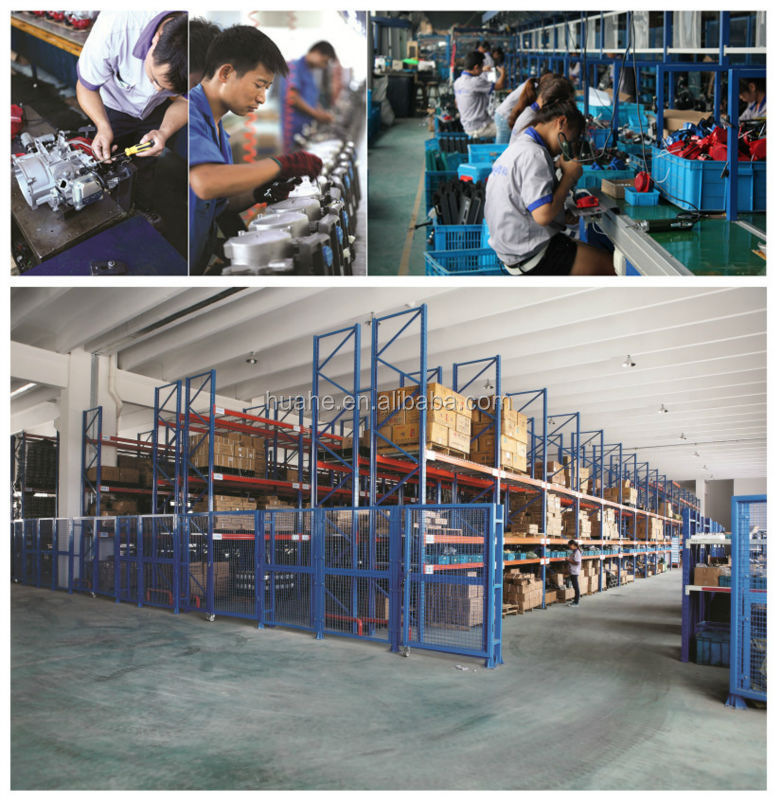

Strict quality control in the whole production, including raw metarial, production site, 100% test before packing.

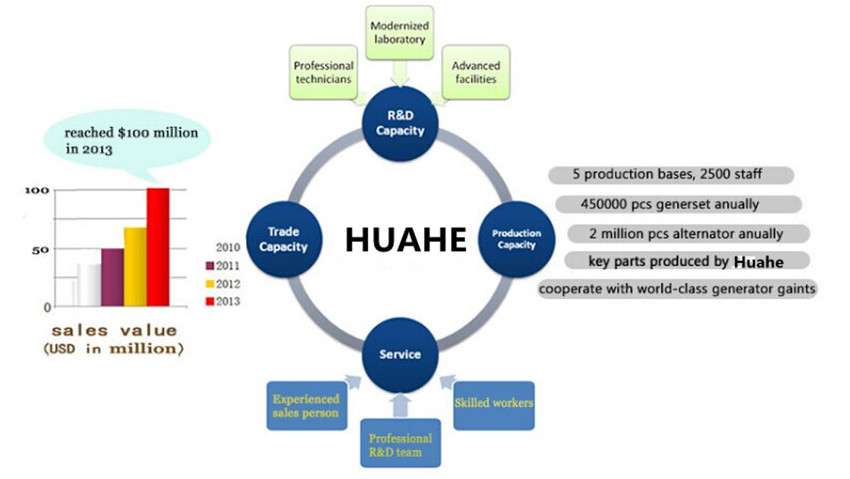

Three reasons for choosing Huahe
1 kva -720kva gasoline generator
Professional generator manufactrurer with R&D capacity
Reliable quality, reasonable price, desirable service
Tell us your demand, provide what you want
Contact us now, let's make a deal.........
