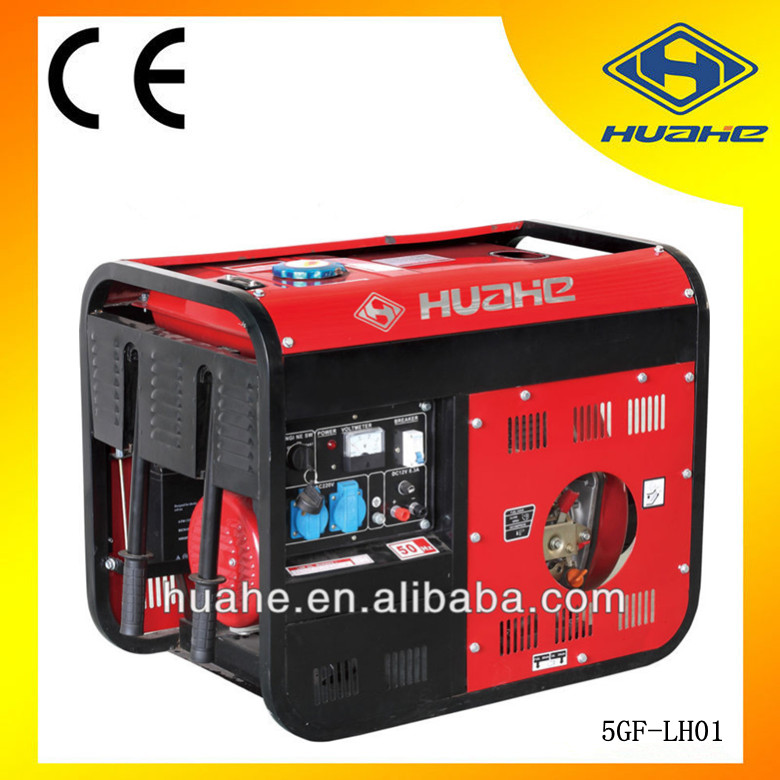

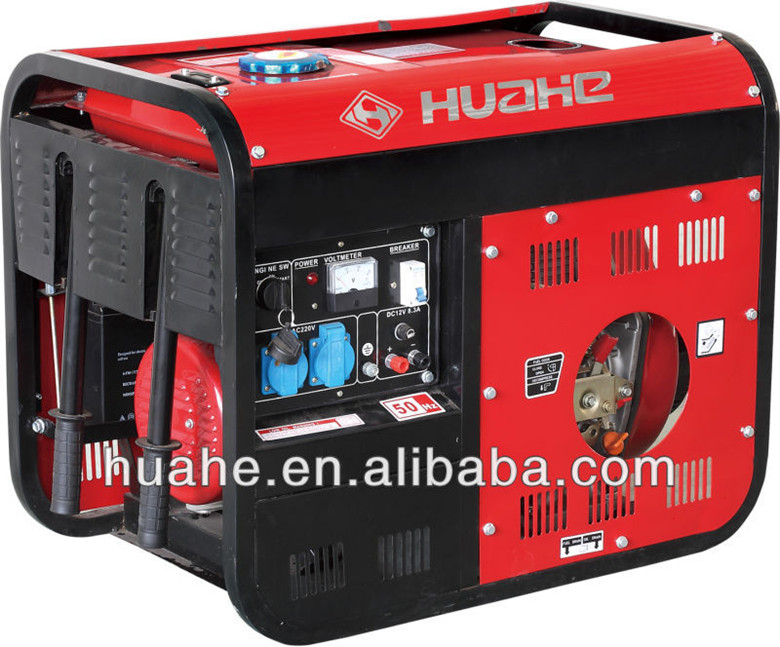

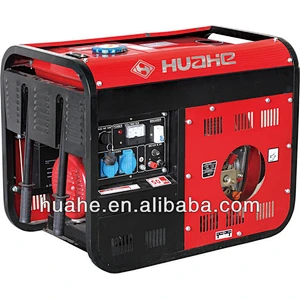

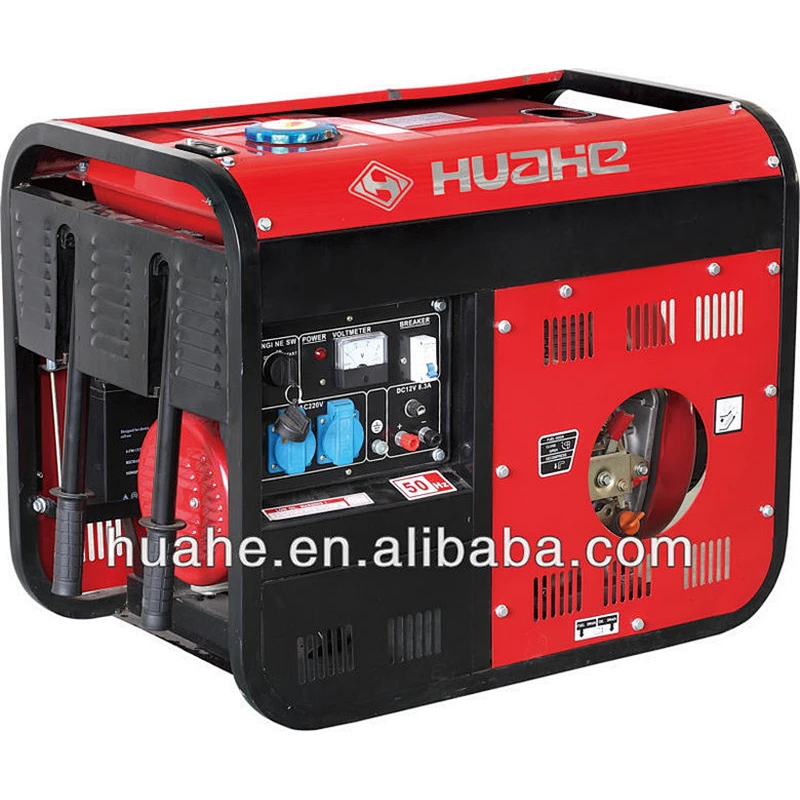

Lowest price 5000W 5KW portable diesel generator,5.5kva open type

Lowest price 5000W 5KW portable diesel generator,5.5kva open type

Model NO.: 2GF-5GF-LH01
Price:: USD 360.00-410.00 / unit
Delivery: FOB
Minimum order quantity: 1 unit
Supply Ability: 500 unit / Day
Country of Origin: NINGBO/SHANGHAI

Quantity:

Product Description

Place of Origin:CN;ZHE
Output Type:AC Three Phase
Brand Name:HUAHE
Rated Power:2KW-5KW
Rated Voltage:230V/120V
Rated Current:7.4A-20.8A
Frequency:50/60HZ
Speed:3600RPM
Model Number:2GF-5GF-LH01
Colour:Red

Lowest price 5000W 5KW portable diesel generator,5.5kva open type

- Technical Data:

MODEL		Economical type						Luxury type						Silent type
		2GF		3GF		5GF		2GF-5GF-LH01		2GF-5GF-LH02		2GF-5GF-LH03		5GF
GENERATOR	Type	Revolving field type 2 pole generator
	Frequency(HZ)	50	60	50	60	50	60	50	60	50	60	50	60	50	60
	Cont.Output(Kw)	1.7	2	2.8	3.3	4.2	5	1.7	2	2.8	3.3	4.2	5	4.2	5
	Voltage(A.C)(V)	230	240(120)	230	240 (120)	230	240 (120)	230	240 (120)	230	240 (120)	230	240 (120)	230	240 (120)
	Current(A.C)(A)	7.4	8.3(16.7)	12.2	13.8(27.5)	18.3	20.8(41.7)	7.4	8.3(16.7)	12.2	13.8(27.5)	18.3	20.8(41.7)	18.3	20.8(41.7)
	Engine Speed(r/min)	3000	3600	3000	3600	3000	3600	3000	3600	3000	3600	3000	3600	3000	3600
	Phase	Single /three
	Power factor(COS)	1
	Excitation system	Controlled Constant Self-excitation
	D.C output V/A	12V/8.3A
	Operation Capacity	12 hour Constant Operation
	Coupling Pattern	Straight shaft coupling

		170FG		178FG		186FG		170FG(E)		178FG(E)		186FG(E)		186FG(E)
ENGINE	Type	Direct injection Vertical,4-cycle,air-cooled diesel engine
	Displacement cc(cu.in)	211(12.88)		29(18.06)		406(24.78)		211(12.88)		296(18.06)		406(24.78)		406(24.78)
	Max.output(KW/rpm)	2.8	3.1	4.4	4.6	6.6	7.35	2.8	3.1	4.4	4.6	6.6	7.35	6.6	7.35
	Cont.output(KW/rpm)	2.5	2.8	4	4.4	5.9	6.6	2.5	2.8	4	4.4	5.9	6.6	5.9	6.6
	Starting system	Recoil						Electric						Electric
	Governor system	Centrfugal weight system
	Fuel	Diesel Light fuel(BS-AL or equivalent)
	Fuel tank capacity(L)	2.5		3.5		5.5		7.5		15		13.55		16
	Lube oil capacity(L)	0.8		1.1		1.65		0.8		1.65		1.1		1.65
	Bore x Stroke(mm)	70×55		78×62		86×70		70×55		86×70		78×62		86×70
UNIT	Protection system	Low oil,Warning System/Stop Device(not for L-series)
	Noise level at 7m dB(A)	79		82		85		79		82		85		70
	Dimensions(L×W×H)mm	575×400×500		640×480×530		720×480×580		575×400×500		640×480×530		720×480×580		950×580×740
	Dry weight(kg)	46		61		95		LE:70LH:65		LE:85LH:80		LE:100LH:95		165

(5KW portable generator,5.5kva open type generator;5KW portable generator,5.5kva open type generator;5KW portable generator,5.5kva open type generator;5KW portable generator,5.5kva open type generator;5KW portable generator,5.5kva open type generator;5KW portable generator,5.5kva open type generator;5KW portable generator,5.5kva open type generator;5KW portable generator,5.5kva open type generator;5KW portable generator,5.5kva open type generator;5KW portable generator,5.5kva open type generator;5KW portable generator,5.5kva open type generator;5KW portable generator,5.5kva open type generator;5KW portable generator,5.5kva open type generator;5KW portable generator,5.5kva open type generator;5KW portable generator,5.5kva open type generator;5KW portable generator,5.5kva open type generator;5KW portable generator,5.5kva open type generator;)

Diesel Generator

OPTION:

Engine:The effective intake and combustion of overhead valve,with easy starting and automatic decompression device;quick response of speed governor;stable transistor ignition system;excellent bearing performance,low vibration of the aluminum connect rod.

Silencer:Use the large silencer produced by patented technology,to minimize the noise.

Oil alert:Oil level under the level line,the engine stops working automatically.

Automatic voltage adjustor:Keeping the voltage stable is especially important for sensitive equipment.

Fuel meter:Show the varietal of fuel accurately.

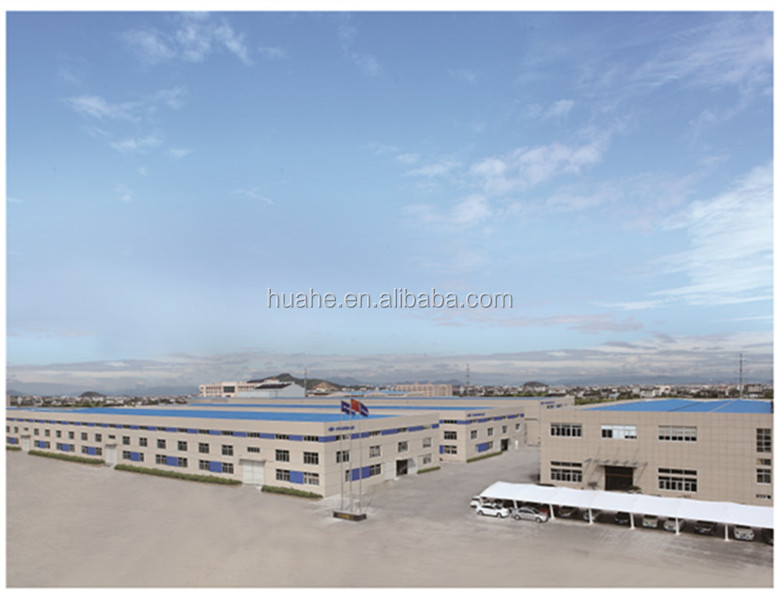

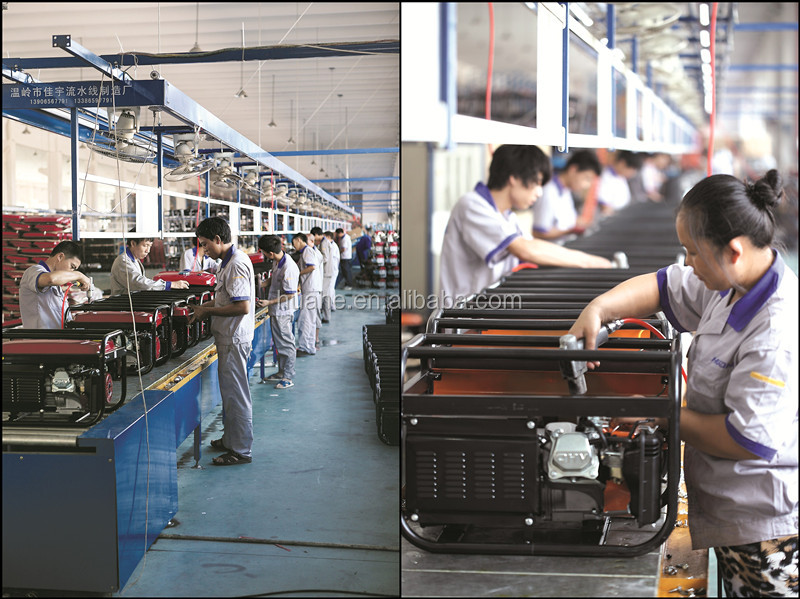

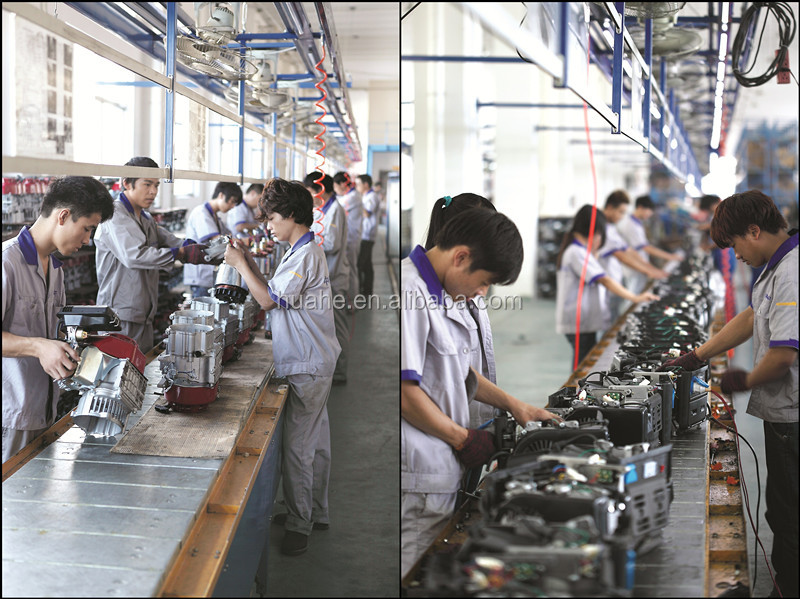

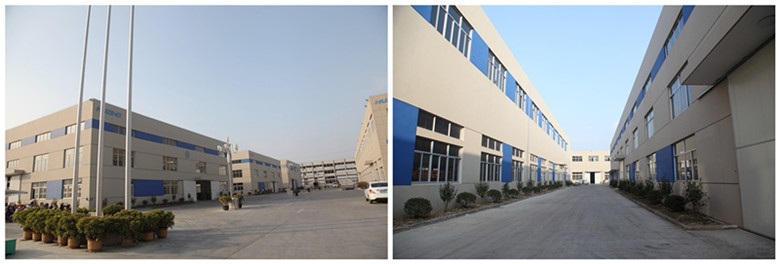

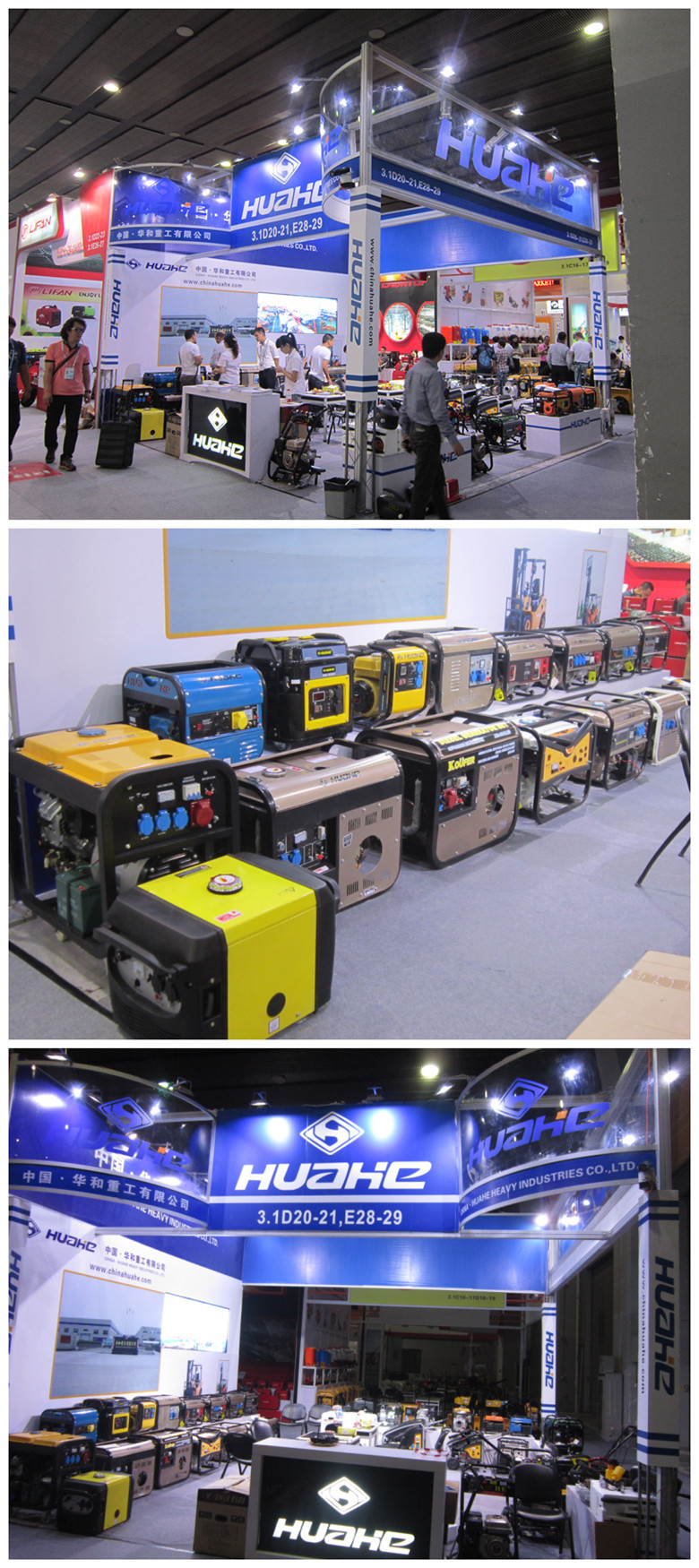

- Factory Show

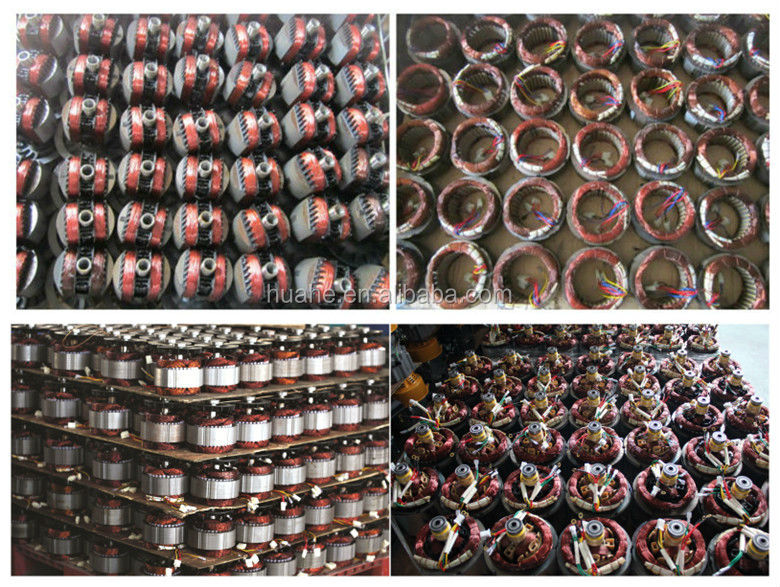

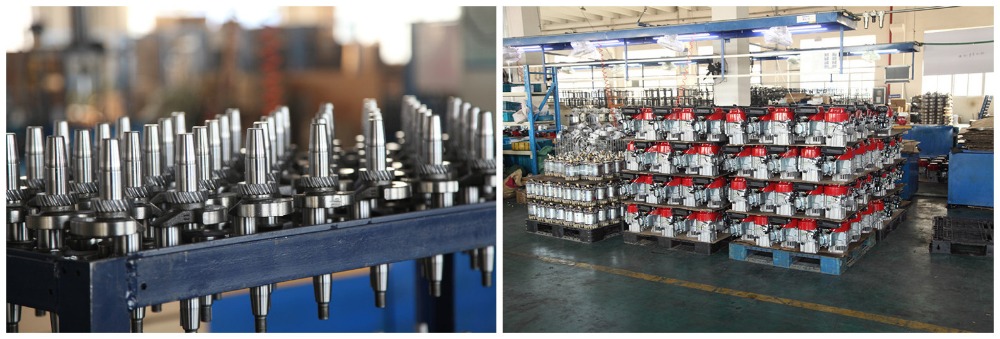

- Raw Material
